55 / 70 project series
For standard building packages where insulated glass, practical frame depth and cost control must be balanced.
CASEMENT WINDOWS

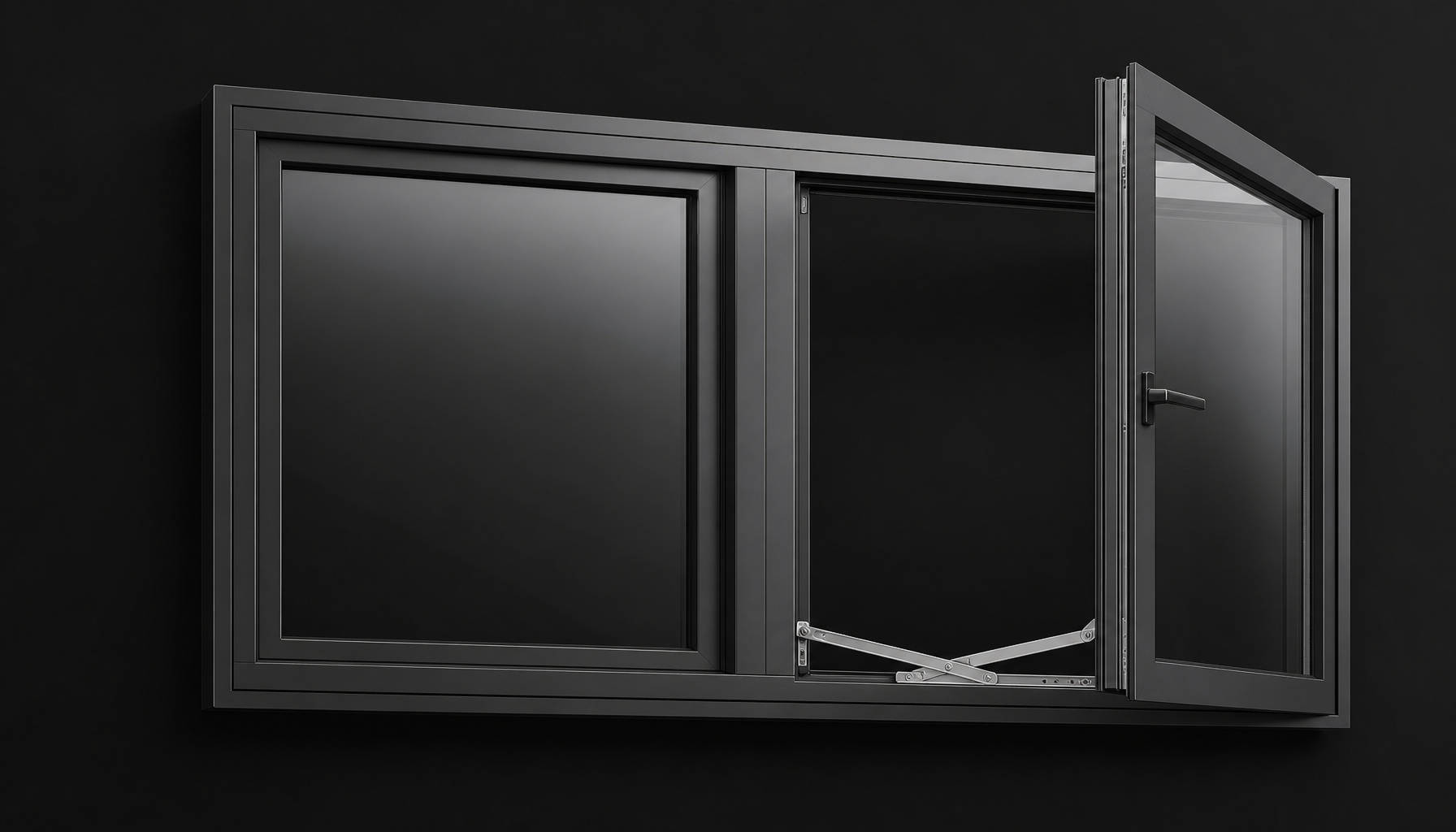

Custom Aluminum Casement Windows for Builder, Villa and Commercial Projects Casement Windows
Send drawings, window schedule and glass targets. YULUX reviews the right system, profile thickness, hardware and export packing scope before quotation.
Thermal-break and non-thermal casement systems configured by drawings, glass, hardware, screen, finish and export packing scope.
Hardware and sealing reviewThermal-break optionsWindow schedule quotation
QUOTE REVIEW Send sizes, drawings or a window schedule for a quick system check.
SPECS & SELECTION
Casement Windows
Casement windows are the main quotation entry for villa, apartment, hotel and builder projects. The right series depends on frame depth, wall thickness, glass build-up, wind exposure, hardware and screen requirement.
- 55 / 70 / 110 / 120 system options
- Thermal-break and non-thermal configurations
- Glass, hardware and screen confirmed by drawings
- Factory quotation support for export projects
System range
55 / 70 / 110 / 120 series
Wall thickness
1.4 / 1.6 / 1.8 / 2.0 / 3.0 mm by series
Glass
5 mm clear glass + 20A + 5 mm clear double-tempered insulated glass, confirmed by project
Screen
Screen available; guardrail optional by project
Opening type
Side-hung, top-hung, fixed light and combined elevations

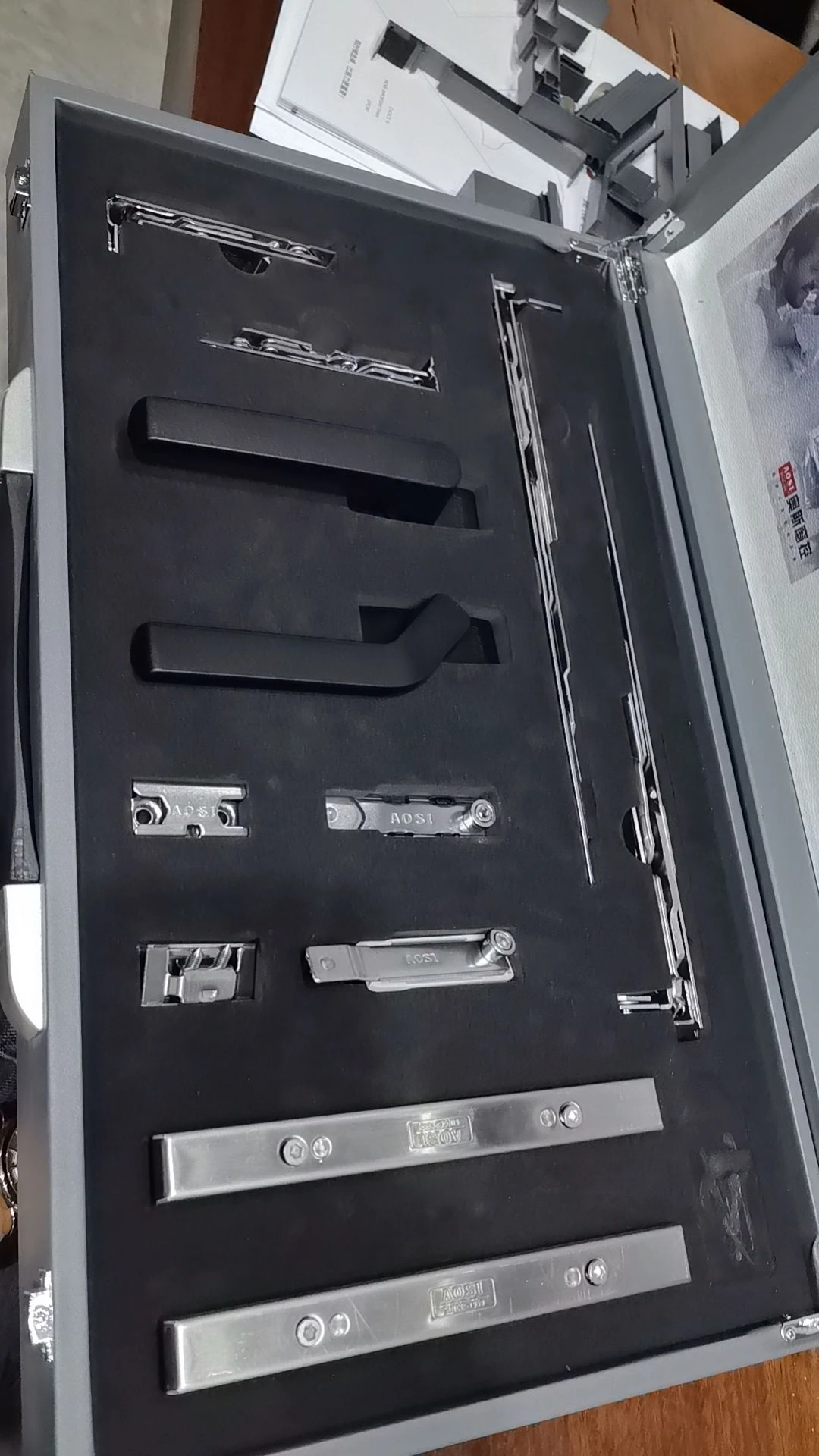

Hardware focus
Friction stay, hinge, handle and multi-point lock by sash size
Seal / drainage
EPDM gasket path, frame rebate and sill drainage confirmed by drawings
Best-fit projects
Villas, apartments, hotels, offices and builder window schedules
Production approval
Series, profile, glass, hardware, screen, color and packing must be approved
Quotation inputs
Drawings, schedule, glass target, color and delivery country
110 / 120 premium series
For villas, high floors and larger openings where stronger profile and glass review are needed.

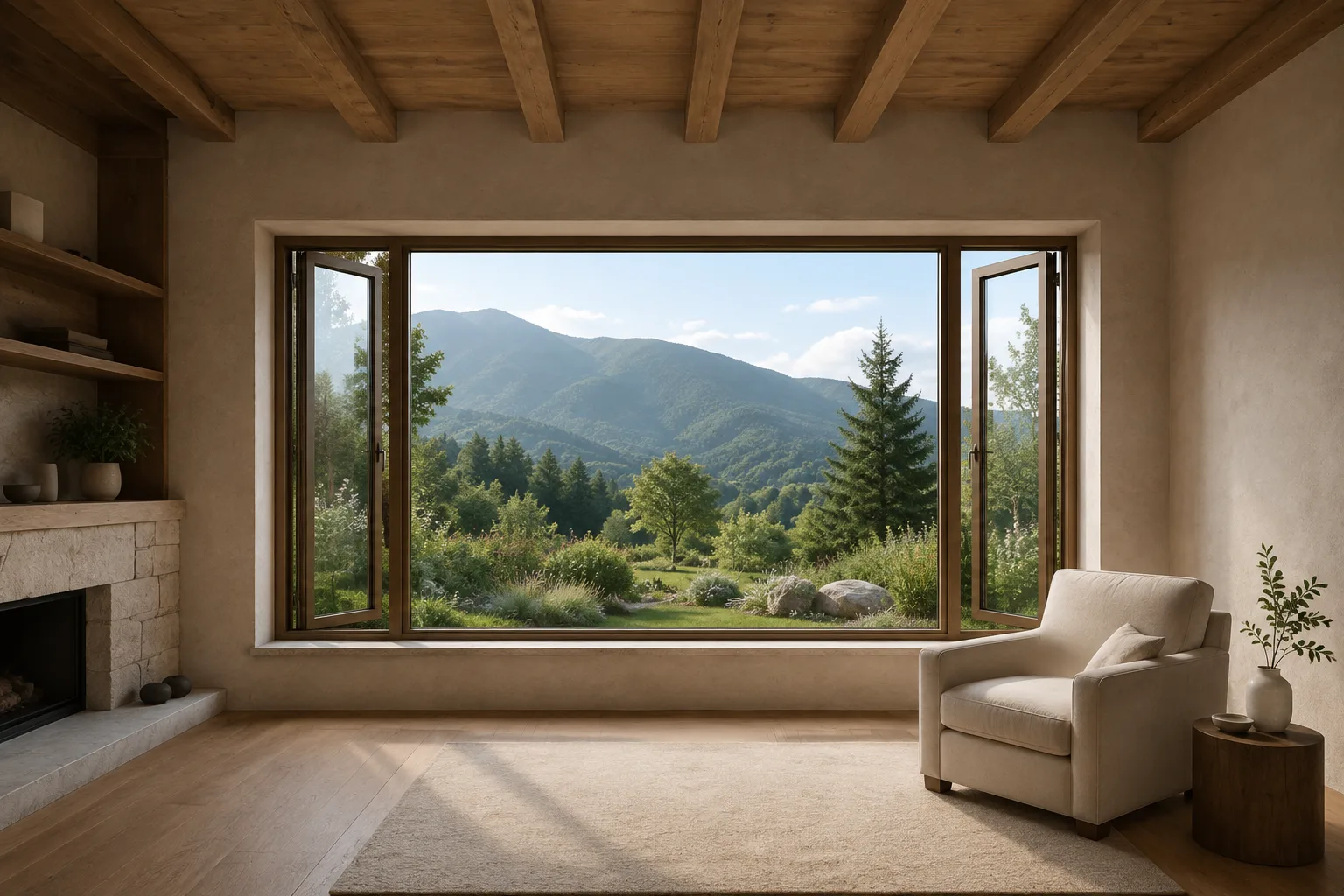

Fixed + opening combinations
For elevations that need view, daylight and ventilation in one window schedule.

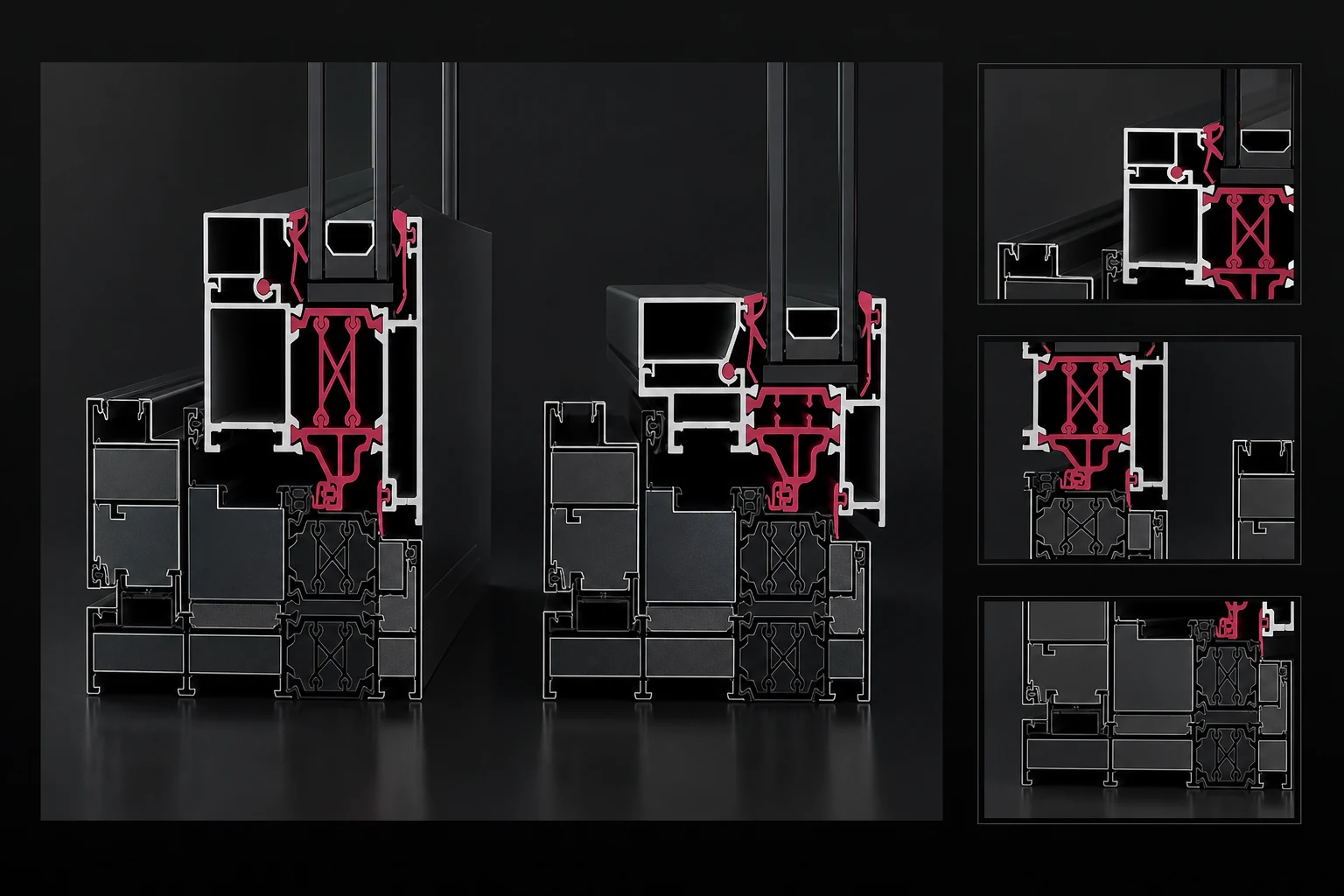

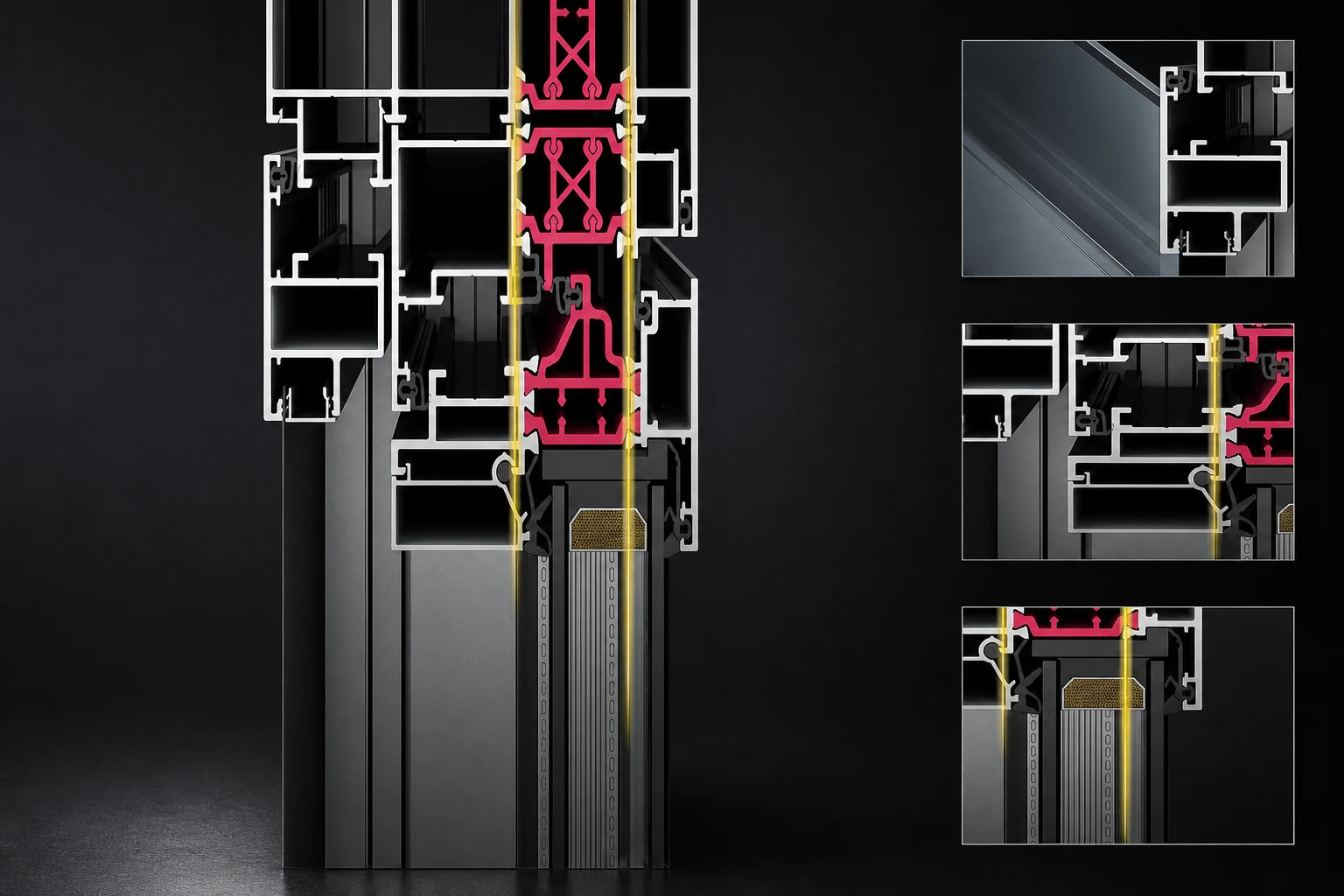

SERIES DETAILS
Product system configuration and technical parameters
| Series | Structure | Wall Thickness | Glass | Screen / Accessory | Application |
|---|---|---|---|---|---|
| Thermal-break 55 project series | Thermal-break aluminum | 1.4 / 1.6 / 1.8 mm | 5 mm clear glass + 20A + 5 mm clear double-tempered insulated glass, confirmed by project | Optional, confirmed by opening method, drawings and installation condition | Hotels, offices and standard project windows |
| Thermal-break 70 project series | Thermal-break aluminum | 1.4 / 1.6 / 1.8 mm | 5 mm clear glass + 20A + 5 mm clear double-tempered insulated glass, confirmed by project | Optional, confirmed by opening method, drawings and installation condition | Residential packages and builder projects |
| Thermal-break 110 / 120 premium series | Thermal-break aluminum | 2.0 / 3.0 mm | 5 mm clear glass + 20A + 5 mm clear double-tempered insulated glass, confirmed by project | Optional, confirmed by opening method, drawings and installation condition | Villas, high floors and oversized openings |
10 SELECTED VIEWS
Scenes, system details and catalog references
10 product views
Use these views to compare scenes, system details, glass, hardware and packing scope before quotation.
RFQ READY
What to send for a casement window quote
A clear window schedule helps us return the right series, glass, hardware, color and packing plan.
Send Casement Window DetailsCAD drawings or window schedule
Opening width, height and quantity
Glass target and local code if any
Color, screen and hardware preference
Project country and delivery condition
Reference photos or elevation drawings

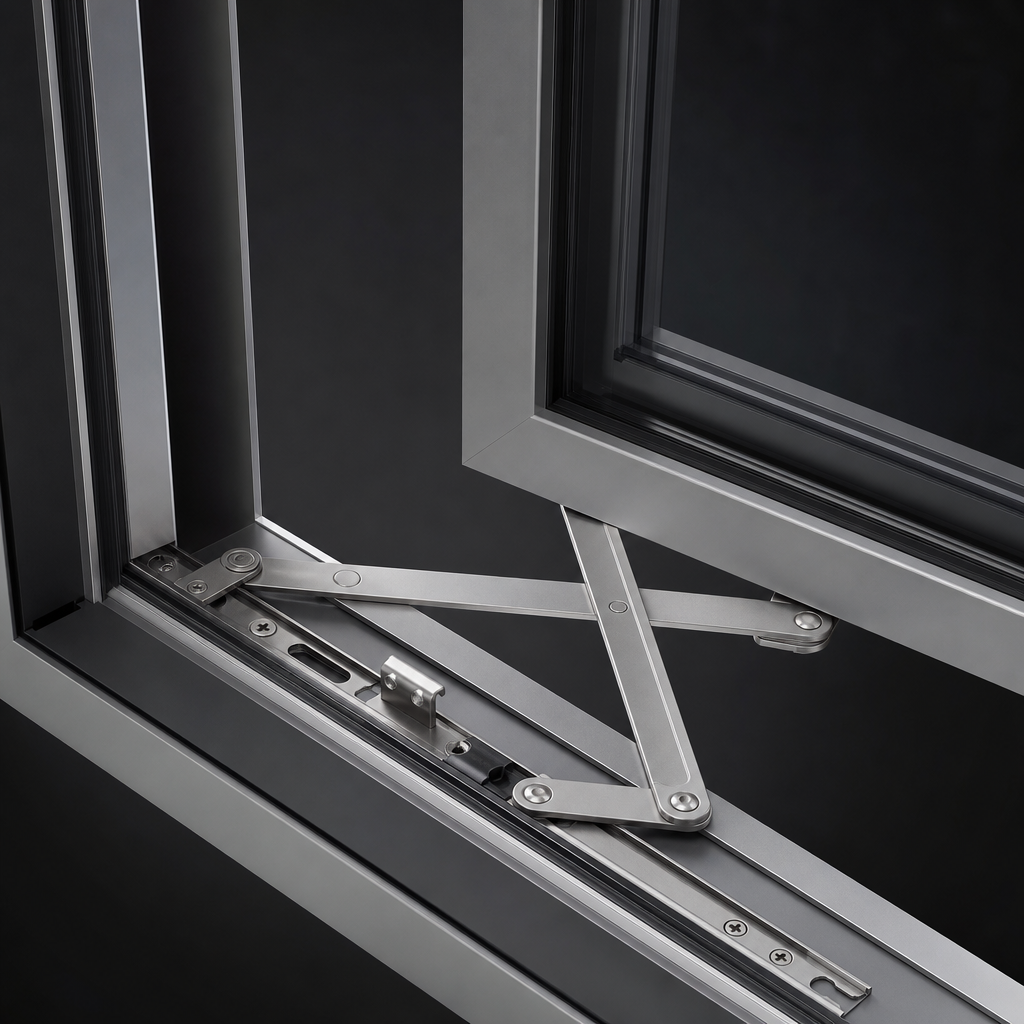

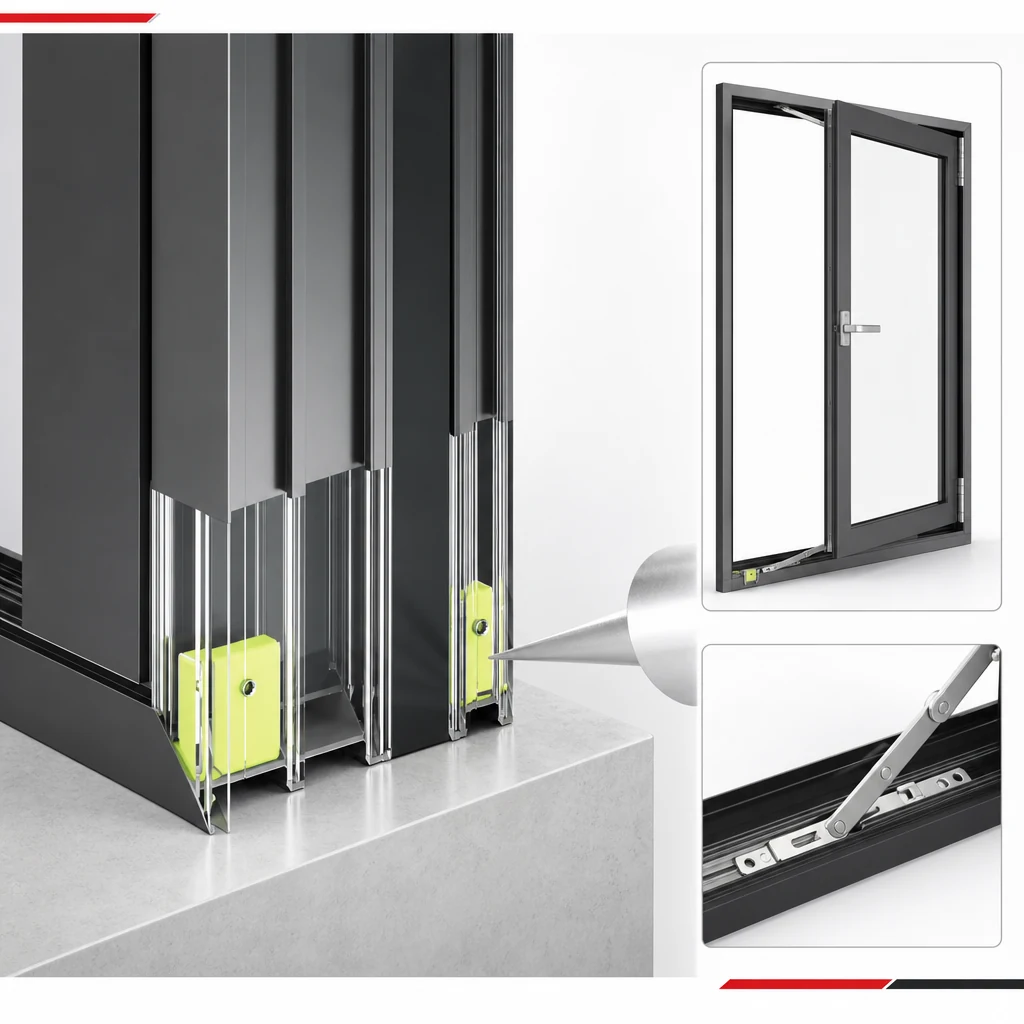

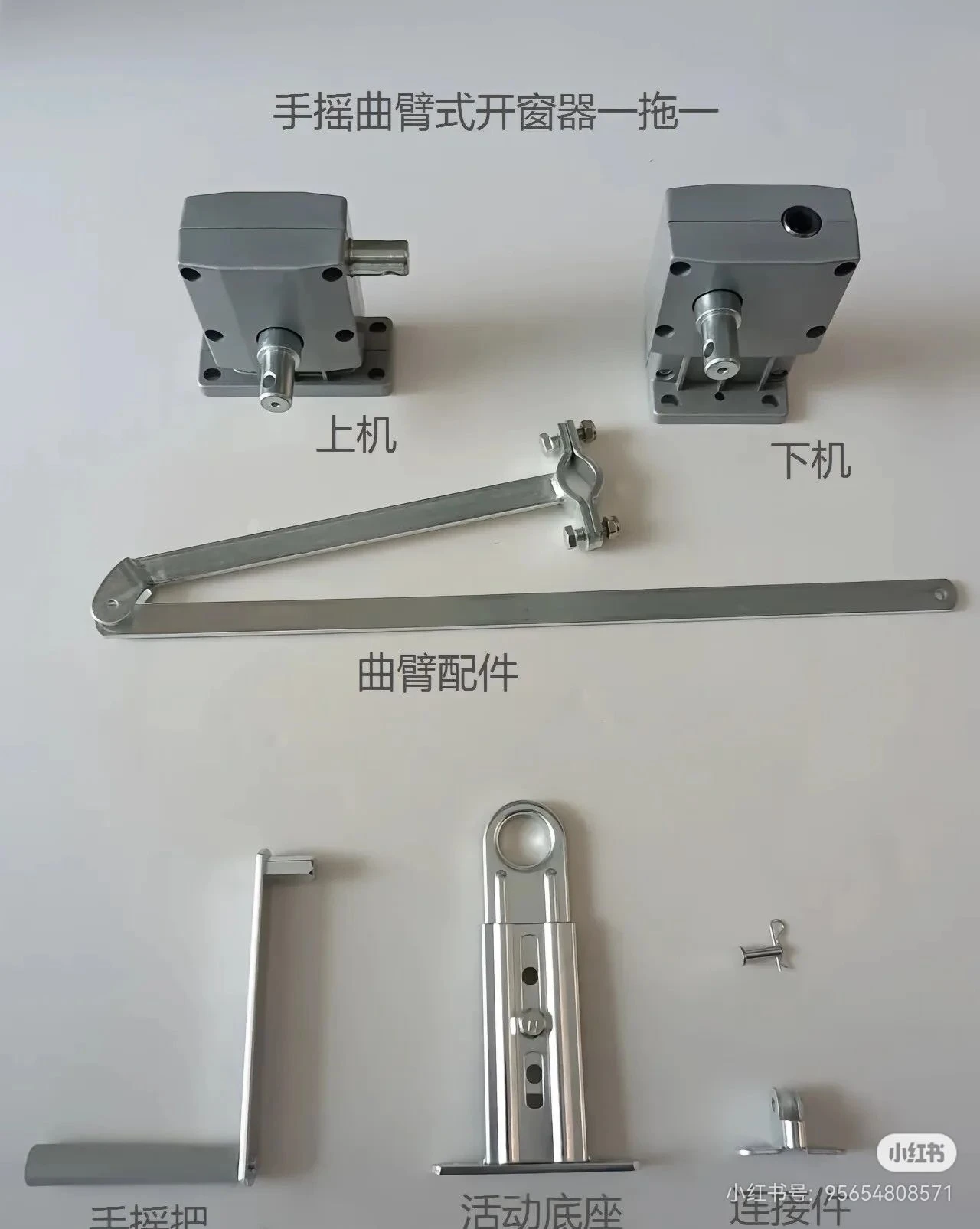

Friction stay support
Friction stays and locking points are selected by sash size and wind exposure.

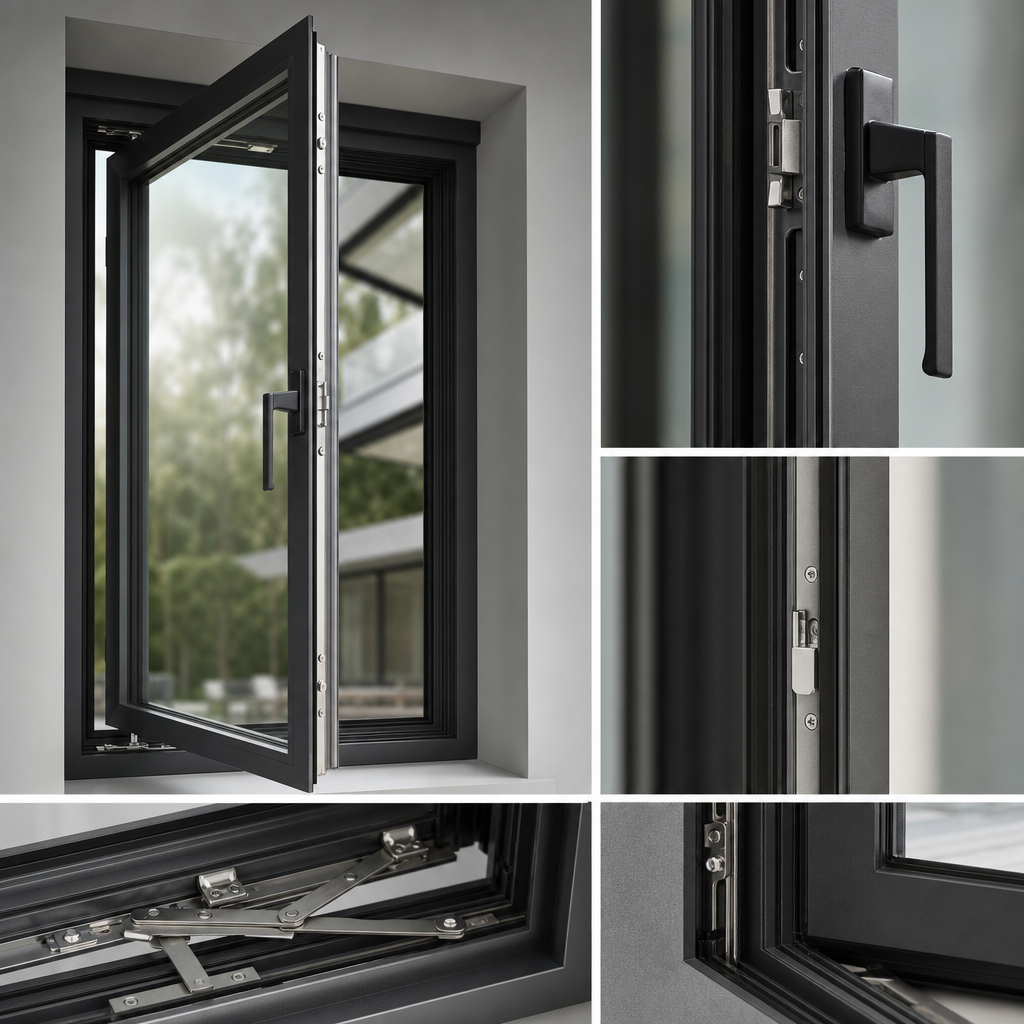

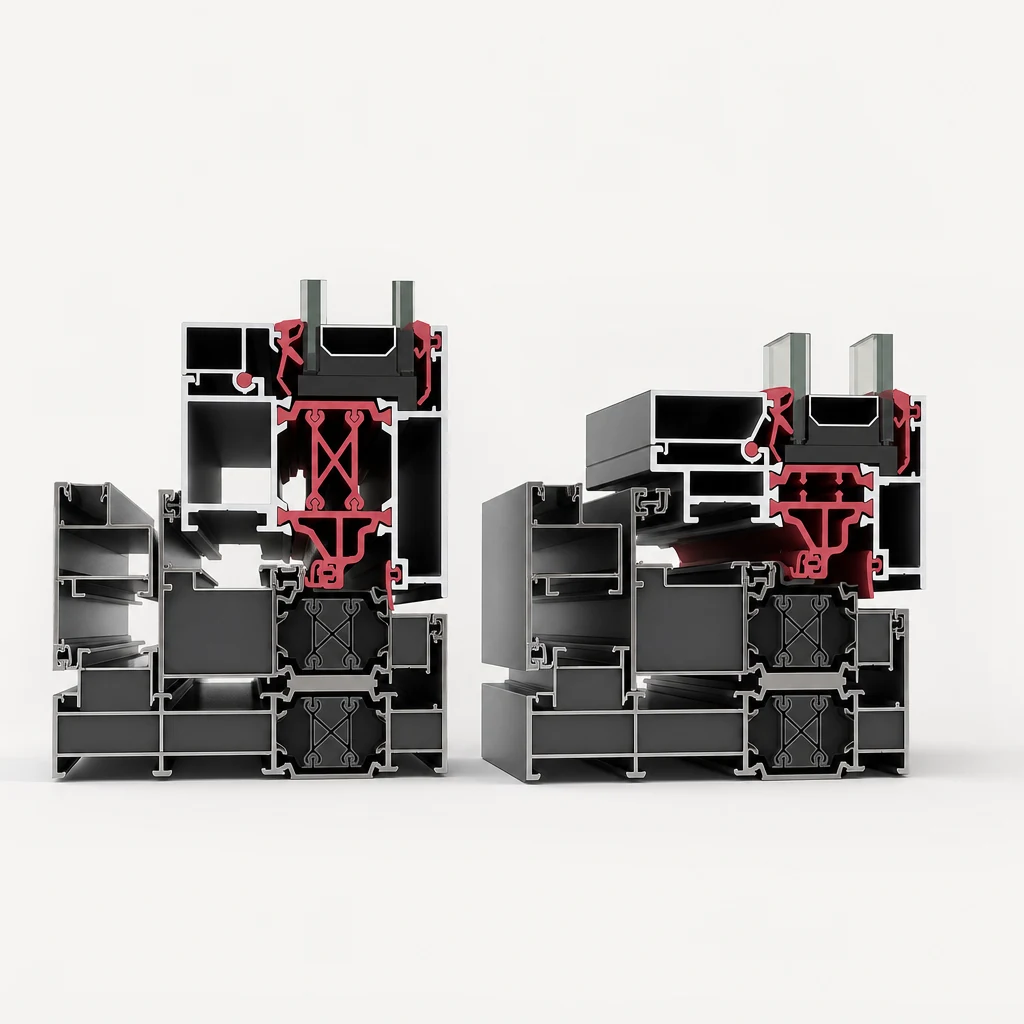

Multi-point locking
Multi-point hardware improves compression, sealing and daily operation stability.

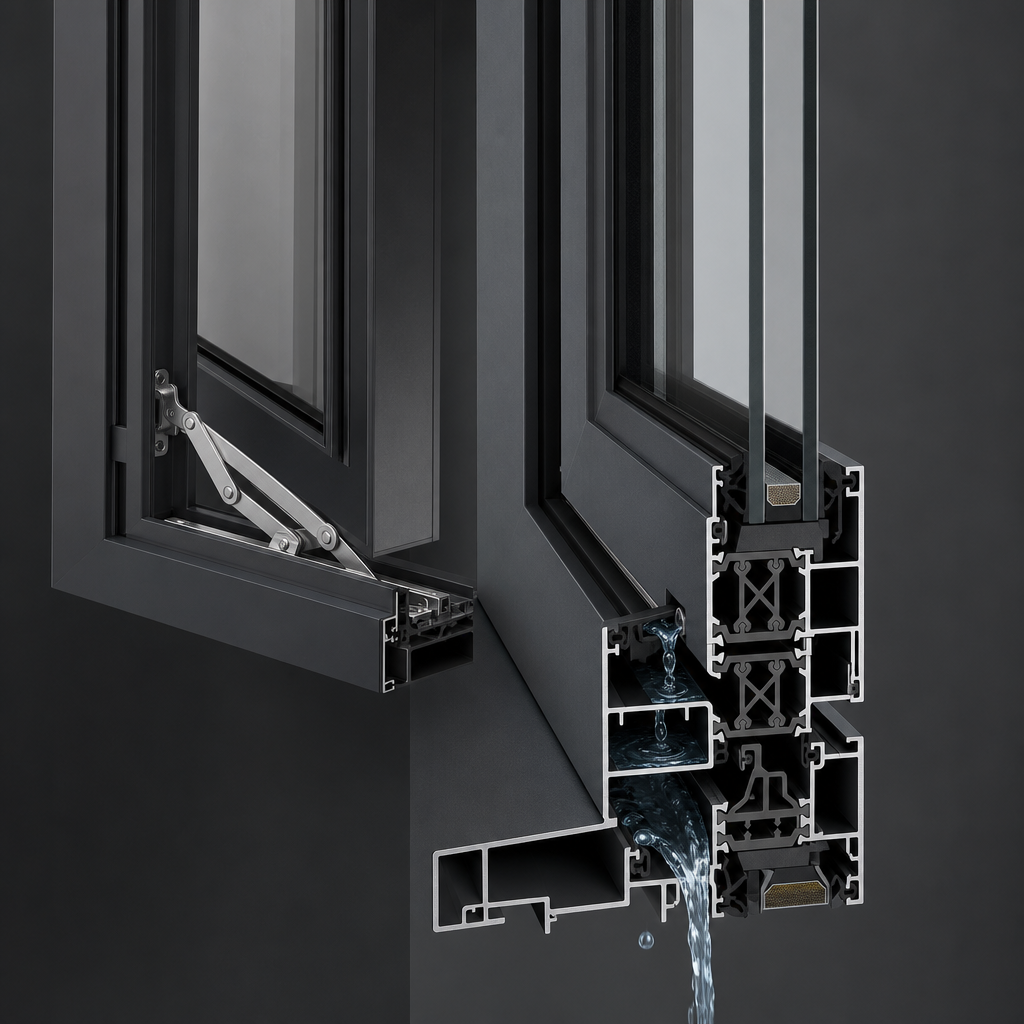

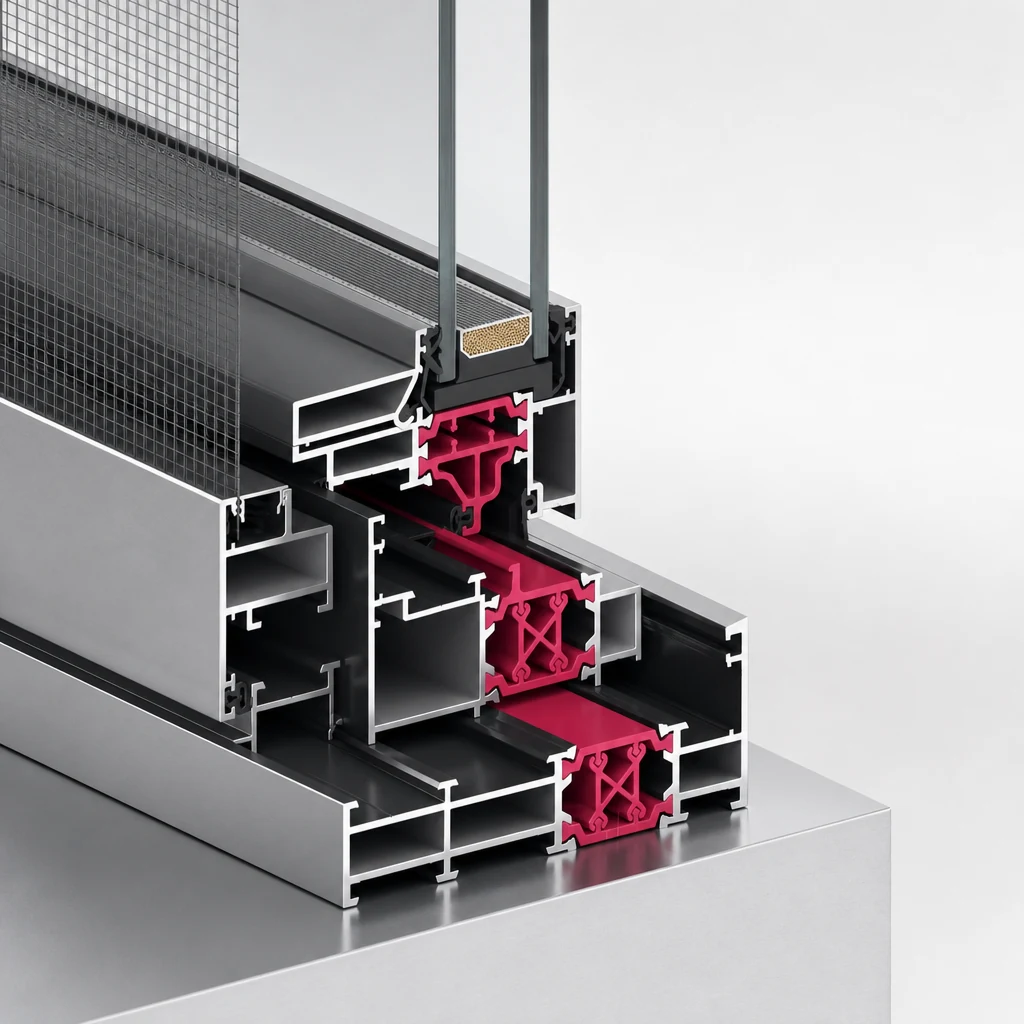

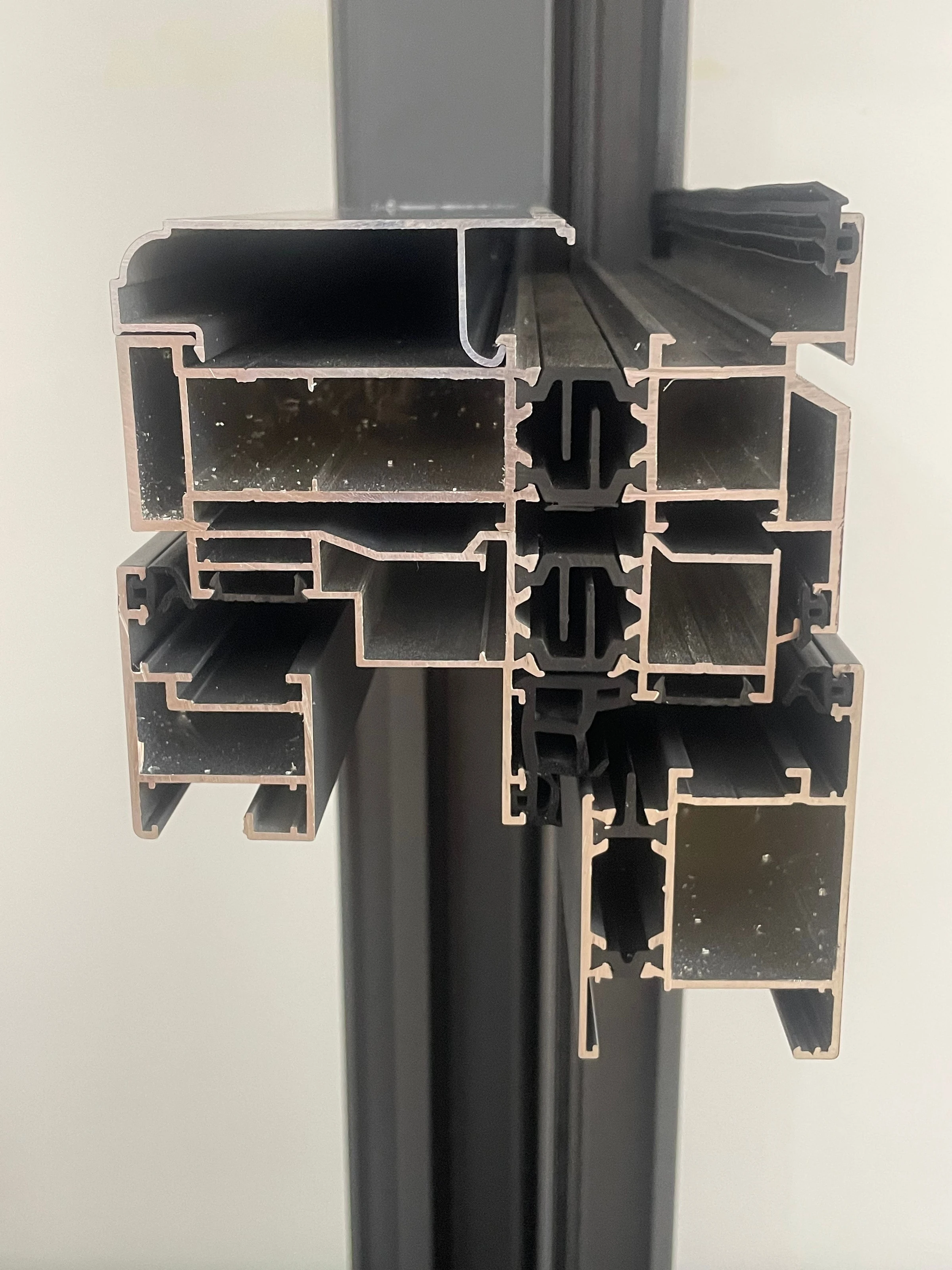

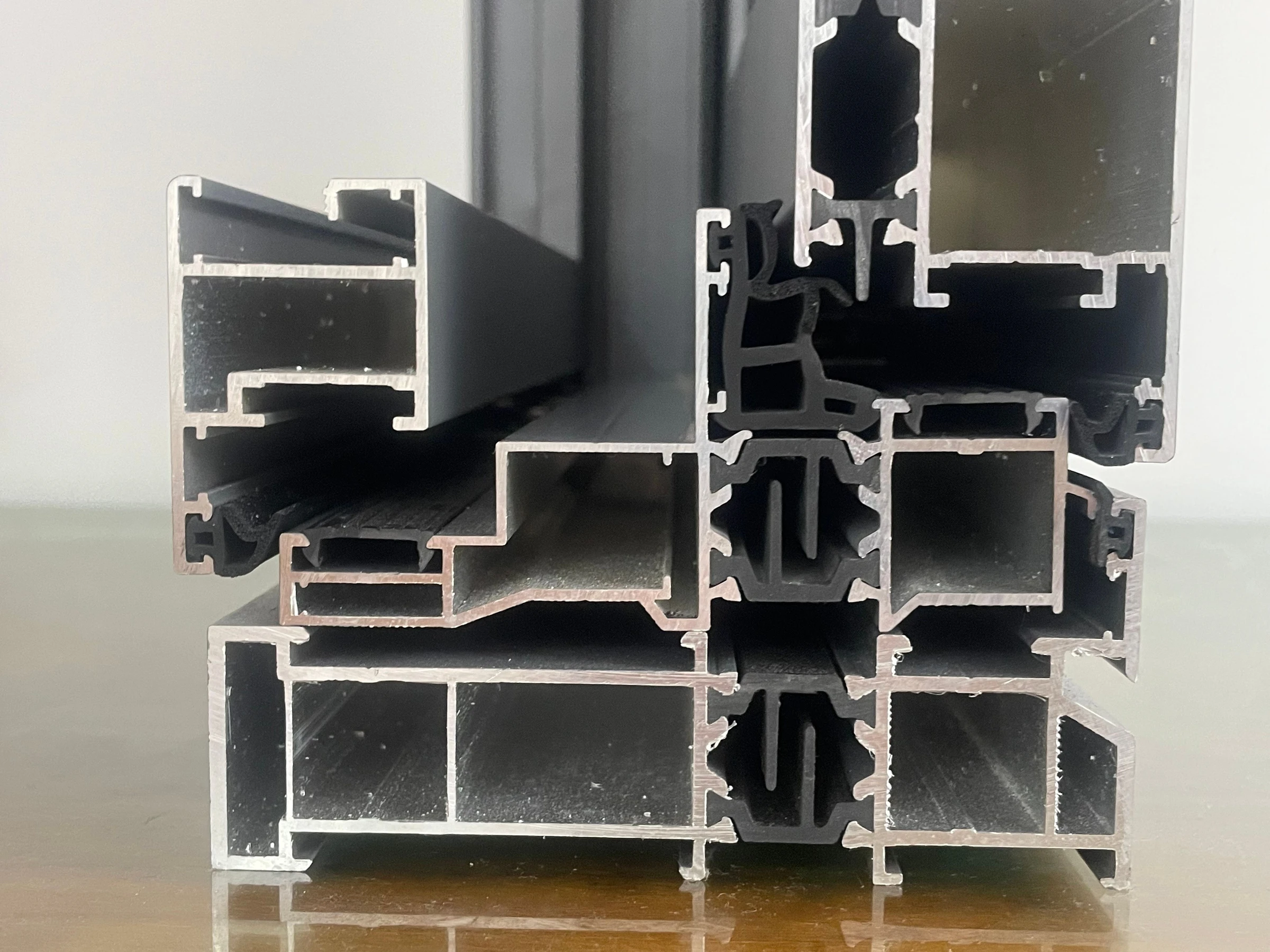

Sealing path
Gaskets, drainage paths and frame rebates are reviewed together.

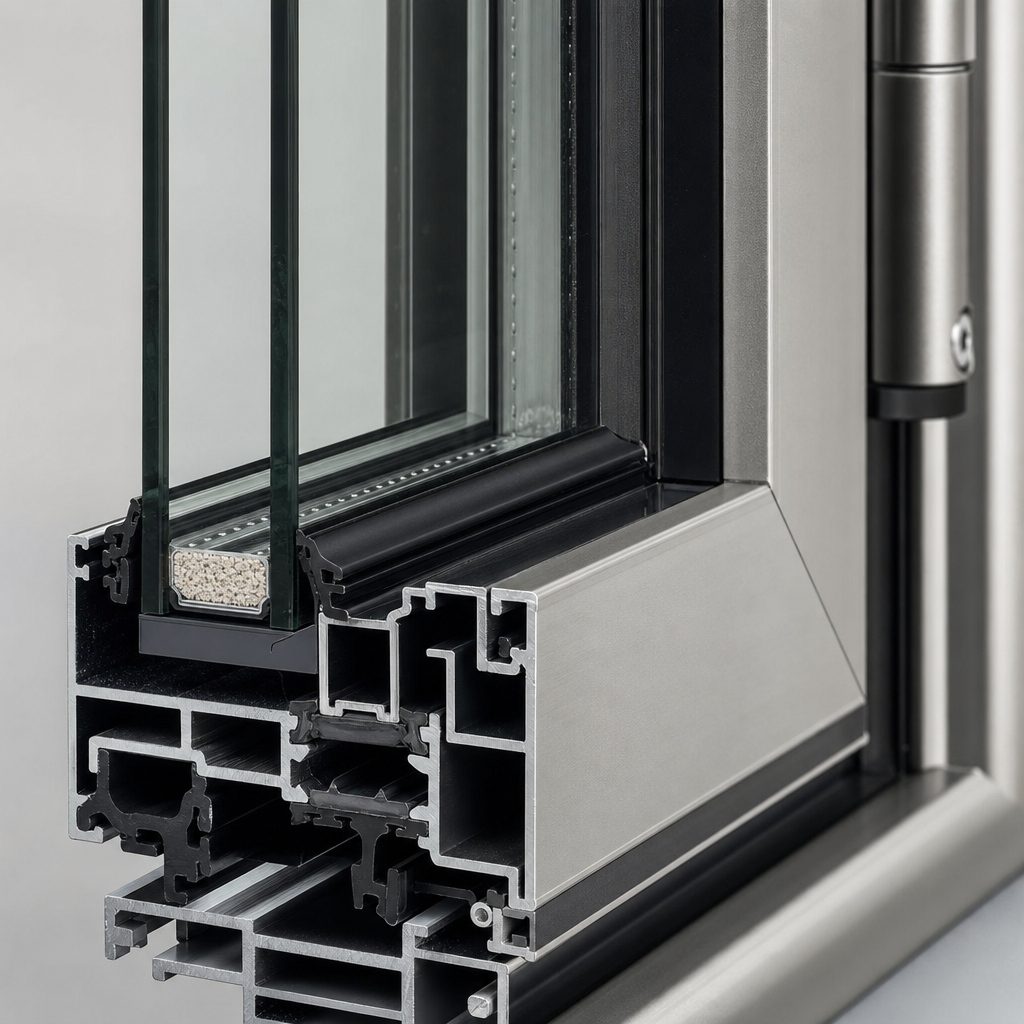

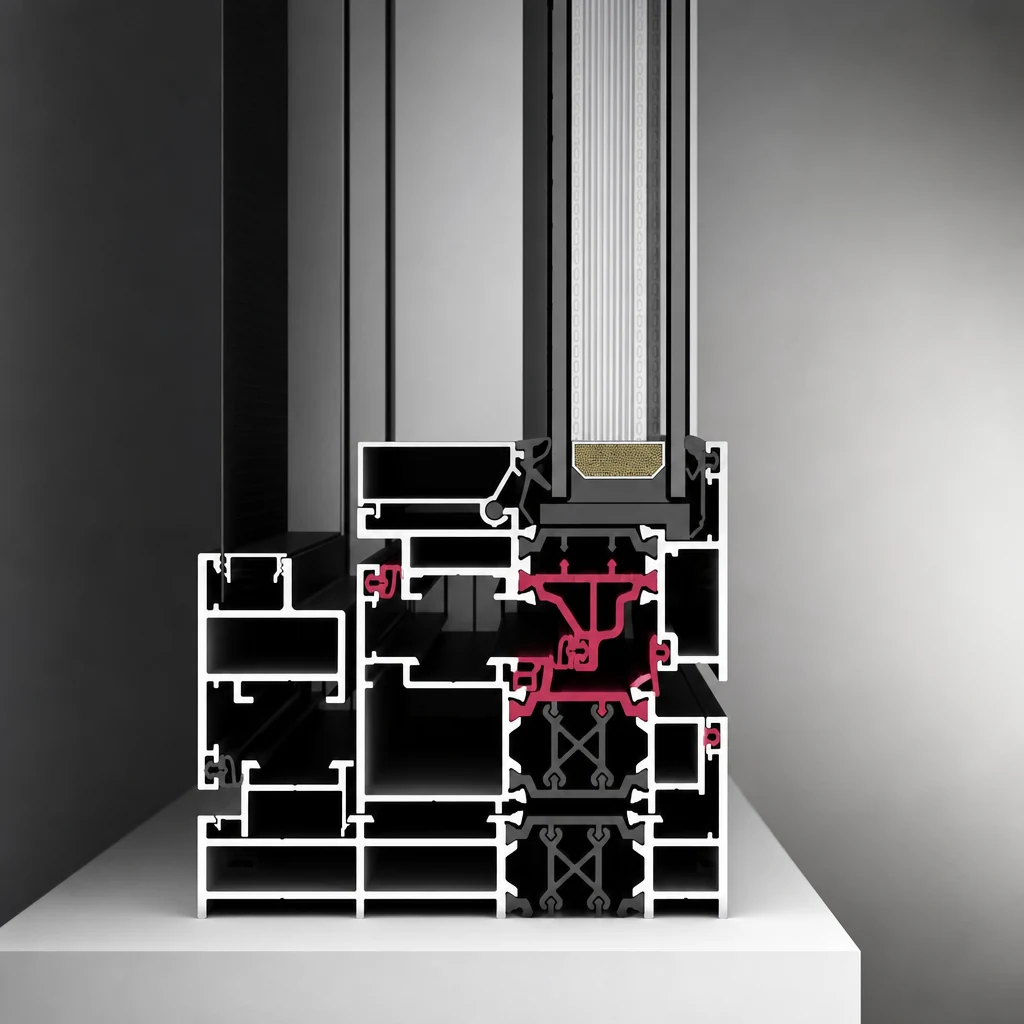

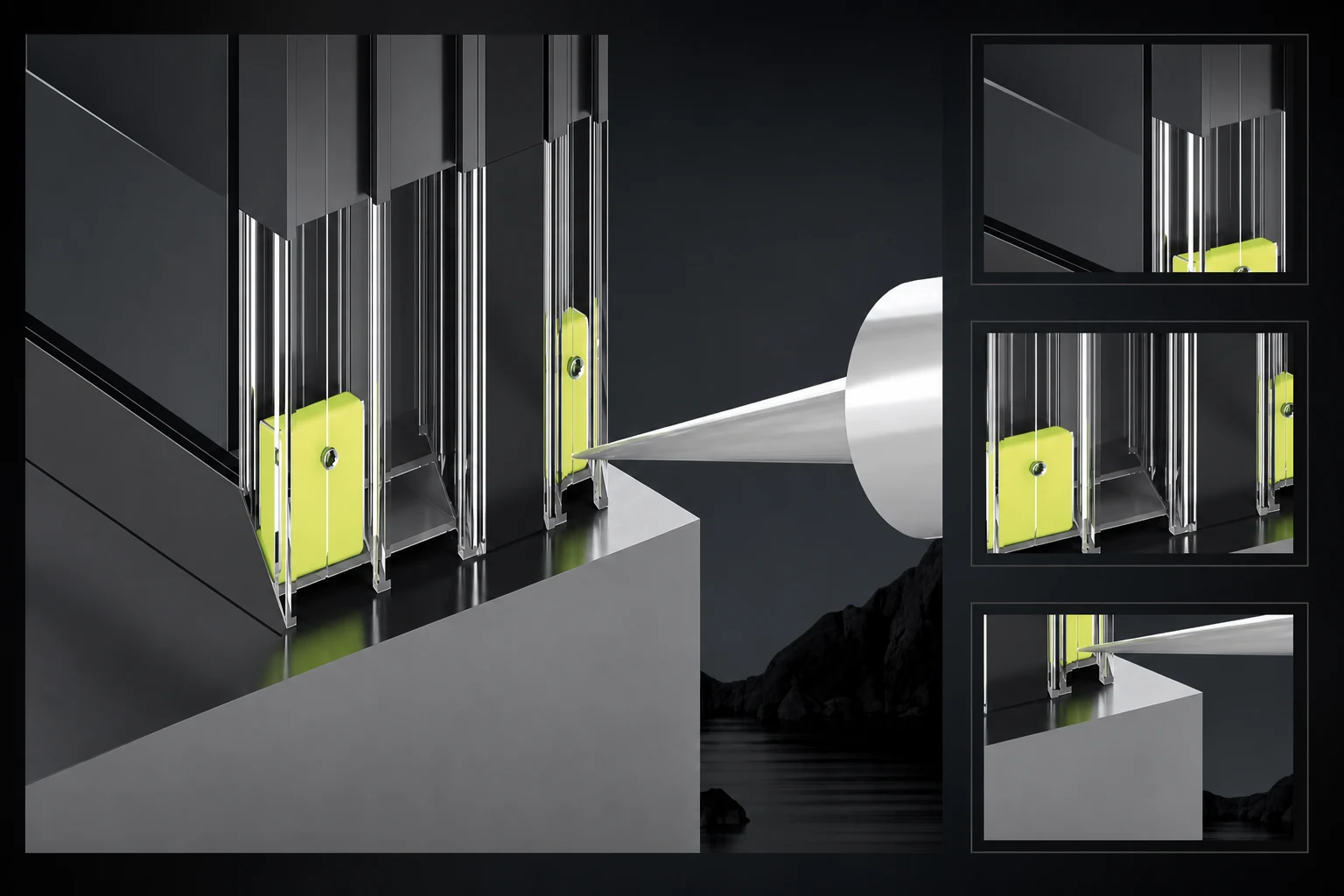

Glass edge build-up
Insulated glass and glazing beads are matched to the selected system depth.
Can you quote from our drawings?
Yes. Send CAD drawings, window or door schedule, opening sizes, glass target, color and destination country. We will review the suitable system before pricing.
Can you start with rough sizes?
Yes. Rough dimensions, quantity and reference photos are enough for the first configuration discussion. Final production still needs confirmed drawings and approved details.
Which casement series should I choose?
Send opening sizes, building type, project country and glass target. We will compare frame depth, wall thickness, glass thickness and hardware scope.
What documents can be prepared for export projects?
We can prepare quotation sheets, specification notes, product photos, packing photos, loading photos, invoice and packing list according to order scope.
