150 screw manual
For projects that need lifting operation with simpler manual drive confirmation.
← Product systems
Smart Lift Windows
150 is the system series number. Wall thickness options include 2.0 / 3.0 / 5.0 mm with motor, remote, voice and rain-sensor choices.
- 150 screw manual series
- 150 chain electric smart series
- 2.0 / 3.0 / 5.0 mm wall thickness options
- Remote, voice and rain sensor options
Quote reviewSend sizes, drawings or a window schedule for a quick system check.
YULUX / ROOMS TO LIVE IN

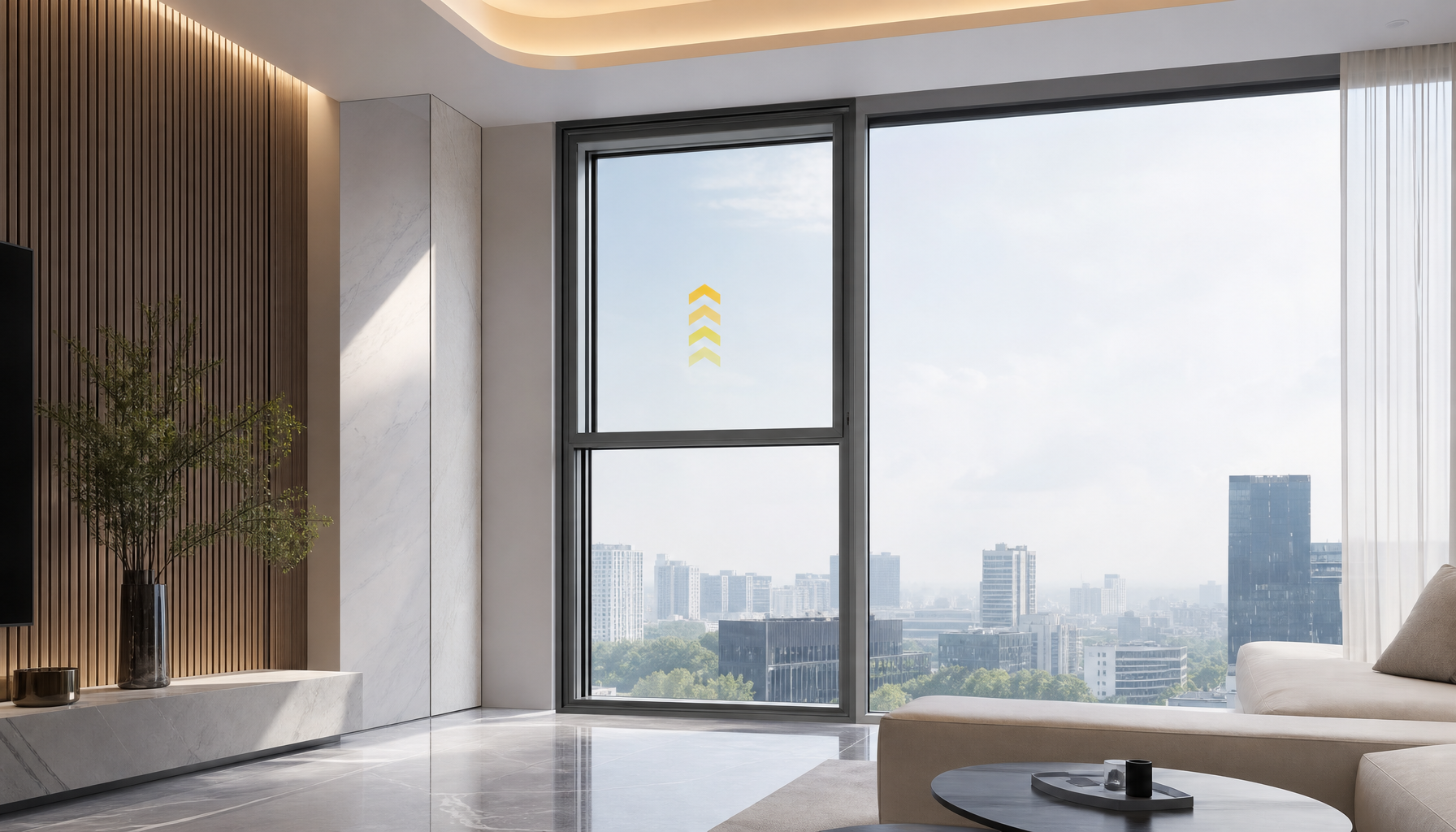

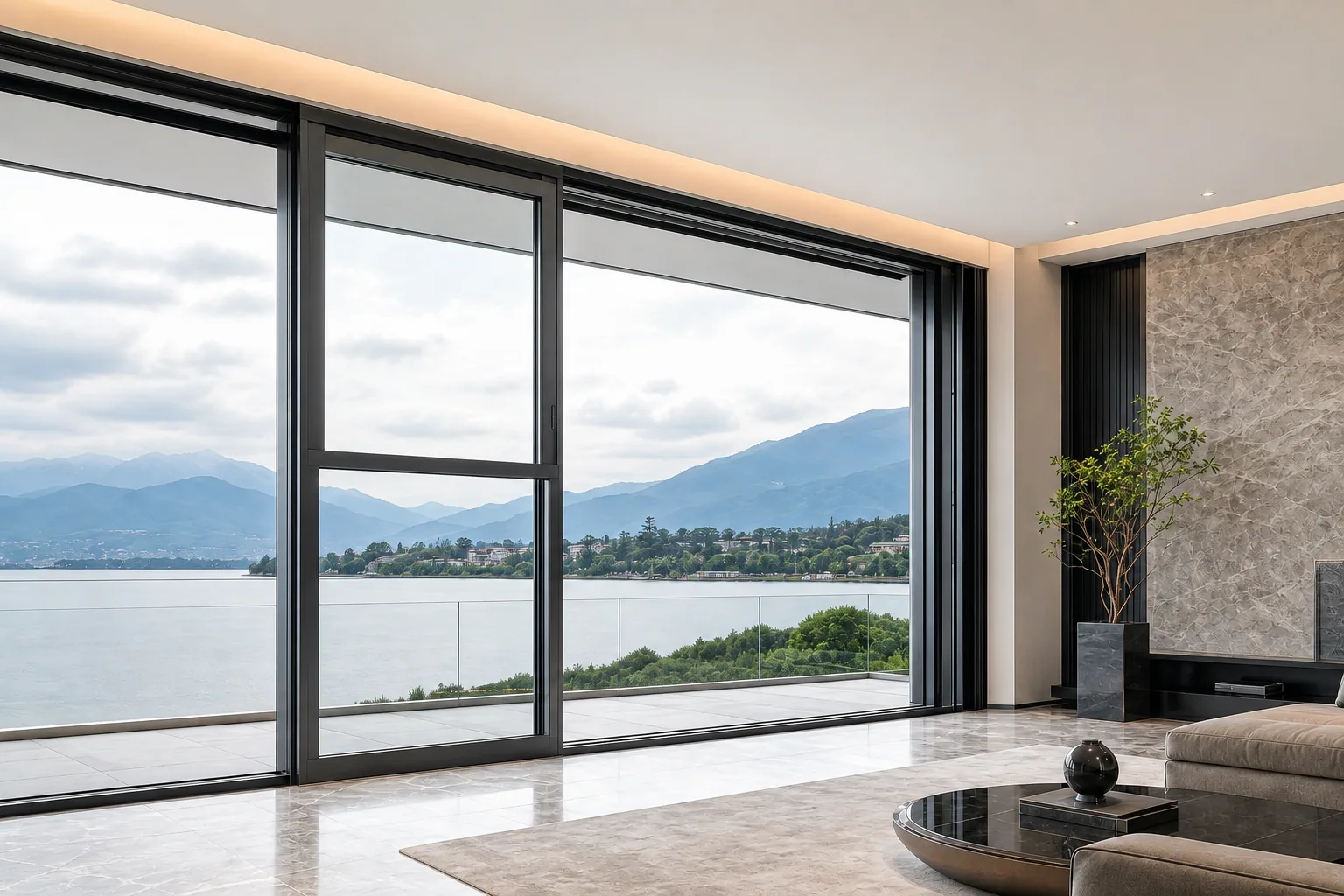

Project application scene
Make time for the mountains.
Put the phone down. Let your eyes rest on the view.
FROM THE ROOM TO THE SPECIFICATION
Plan the view and the controls
The position of a lift window needs to suit both the view and everyday operation. This scene does not establish the motor, sensors or safety features; select the drive and controls after reviewing sash size and glass weight.
- Confirm manual or electric operation, power, wiring and control location.
- Discuss anti-pinch protection, travel limits and manual override as project requirements, not assumed inclusions.
SELECTED VIEWS
Scenes, system details and catalog references
Selected product views
Use these views to compare scenes, system details, glass, hardware and packing scope before quotation.
SPECS & SELECTION
Smart Lift Windows
Smart lift windows should be quoted with drawings, opening size, glass weight, drive method and control method. YULUX reviews manual screw, electric chain and smart control options by project.
Send drawings, glass weight, drive preference and control needs so the lifting system can be reviewed before quotation.
Performance documents must match the selected system, opening type, dimensions and glazing. Tell us which reports your project requires so their availability and scope can be confirmed before ordering.
- 150 screw manual series
- 150 chain electric smart series
- 2.0 / 3.0 / 5.0 mm wall thickness options
- Remote, voice and rain sensor options
| Property | Value |
|---|---|
| System number | 150 series |
| Wall thickness | 2.0 / 3.0 / 5.0 mm |
| Drive method | Manual screw / electric chain / motor option by project |
| Smart options | Mobile remote, voice control, rain sensor and smart-home linkage |
| Glass weight | Glass thickness and panel size must be checked before drive selection |
| Safety | Anti-pinch, limit position and manual override discussed by project |
| Power condition | Voltage, wiring route and installation access confirmed before production |

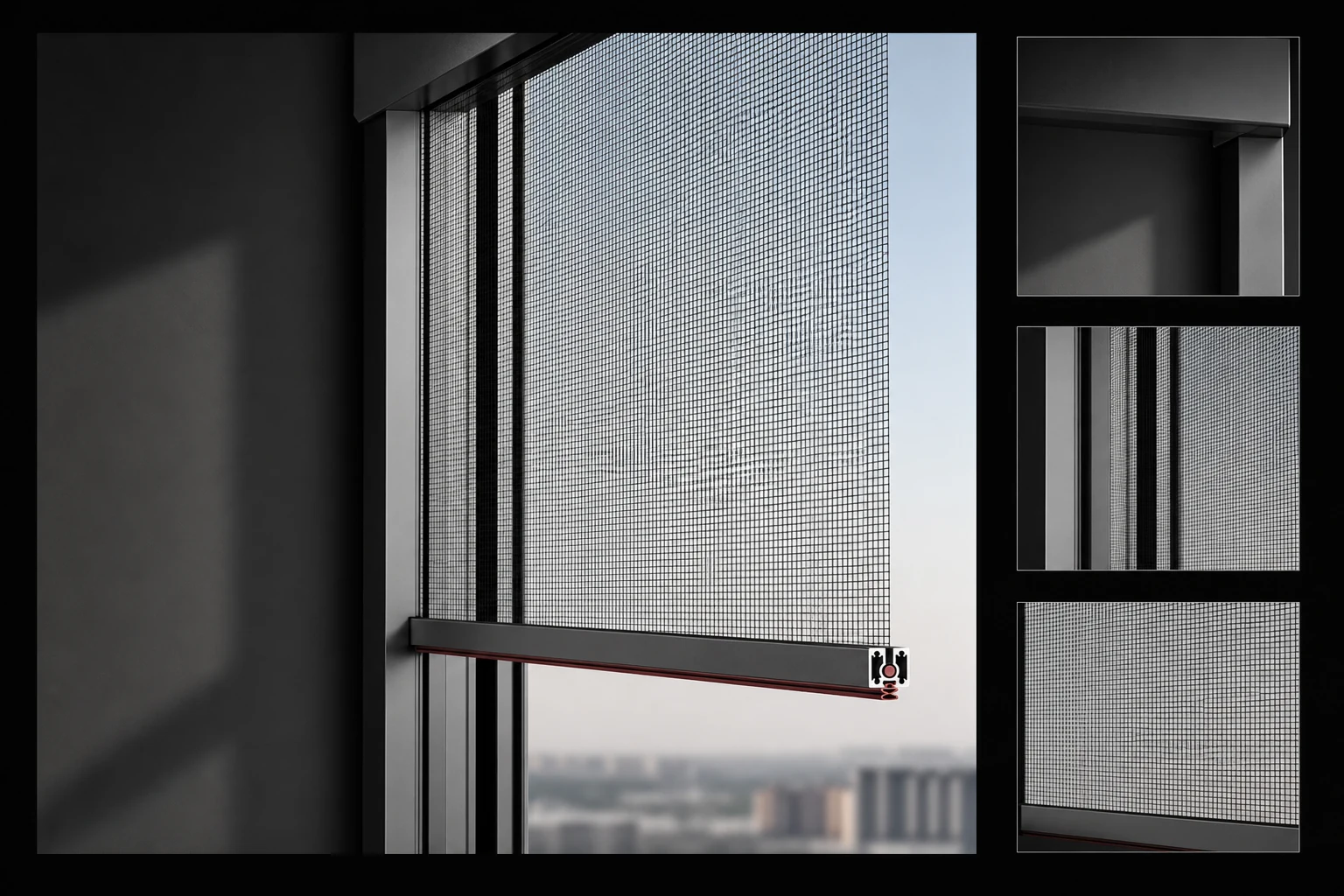

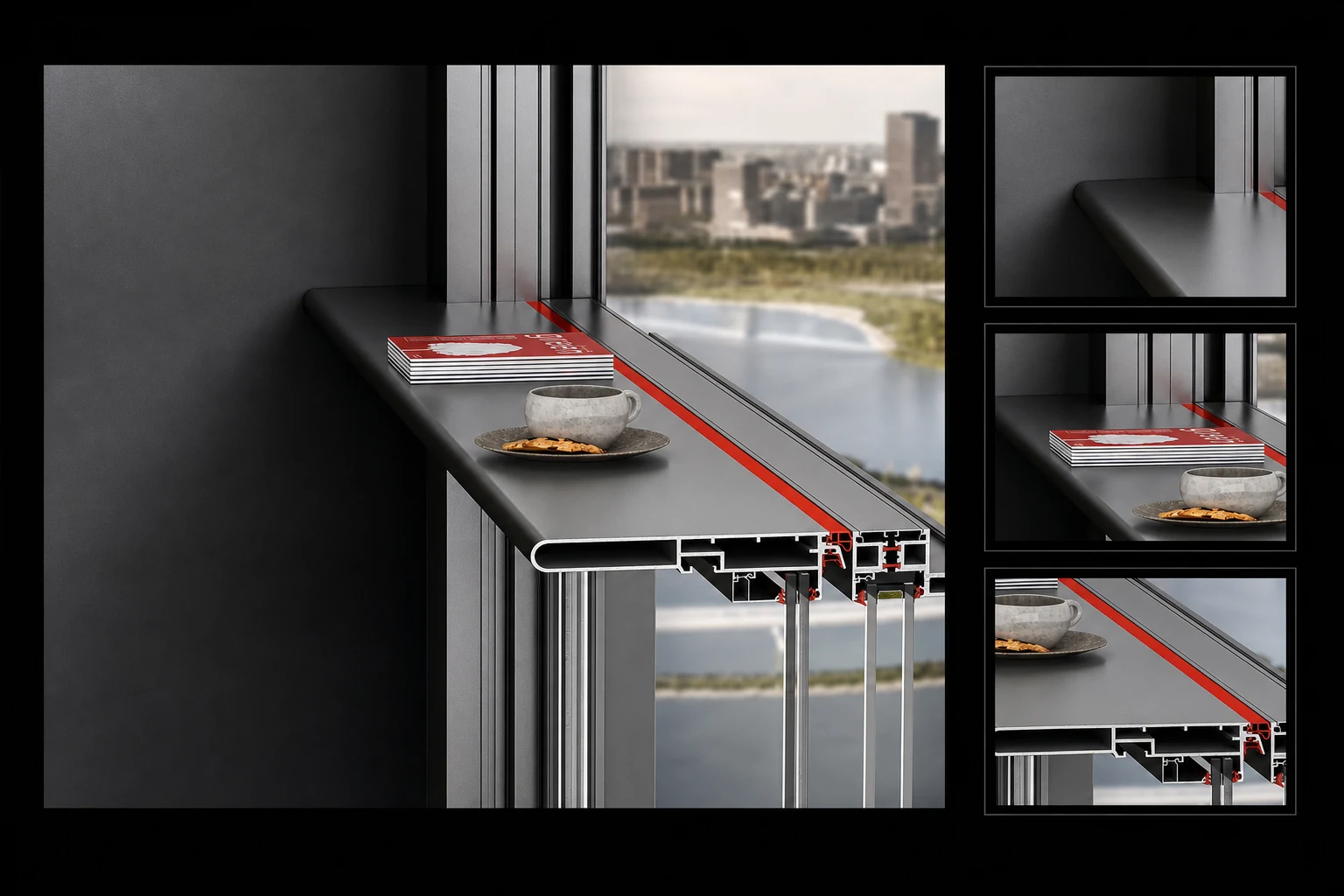

| Screen / sill | Roller screen, sill detail and ventilation use reviewed together |
| Quotation inputs | Opening size, glass weight, drive, control, rain sensor and power condition |
150 chain electric
For smart homes and premium villas where electric drive and control logic matter.
Large-panel feasibility
Glass weight, opening size, drive method and safety features must be checked together.
Product system configuration and technical parameters
| Series | Structure | Wall Thickness | Glass | Screen / Accessory | Application |
|---|---|---|---|---|---|
| 150 screw manual series | Manual screw lifting window | 2.0 / 3.0 / 5.0 mm | 5 mm clear glass + 20A + 5 mm clear double-tempered insulated glass, confirmed by project | Optional, confirmed by opening method, drawings and installation condition | Residential communities, villas and wide-view openings |
| 150 chain electric smart series | Electric chain smart lifting window | 2.0 / 3.0 / 5.0 mm | 5 mm clear glass + 20A + 5 mm clear double-tempered insulated glass, confirmed by project | Optional, confirmed by opening method, drawings and installation condition | Smart homes, premium villas and mansion projects |
What to send for a smart lift window quote
A smart-window quote must include drawings, glass weight and control requirements.
Send Smart Window DetailsOpening size and drawings
Glass thickness or estimated weight
Manual screw or electric chain
Remote, voice or smart-home control
Rain sensor and anti-pinch requirement
Power and installation condition

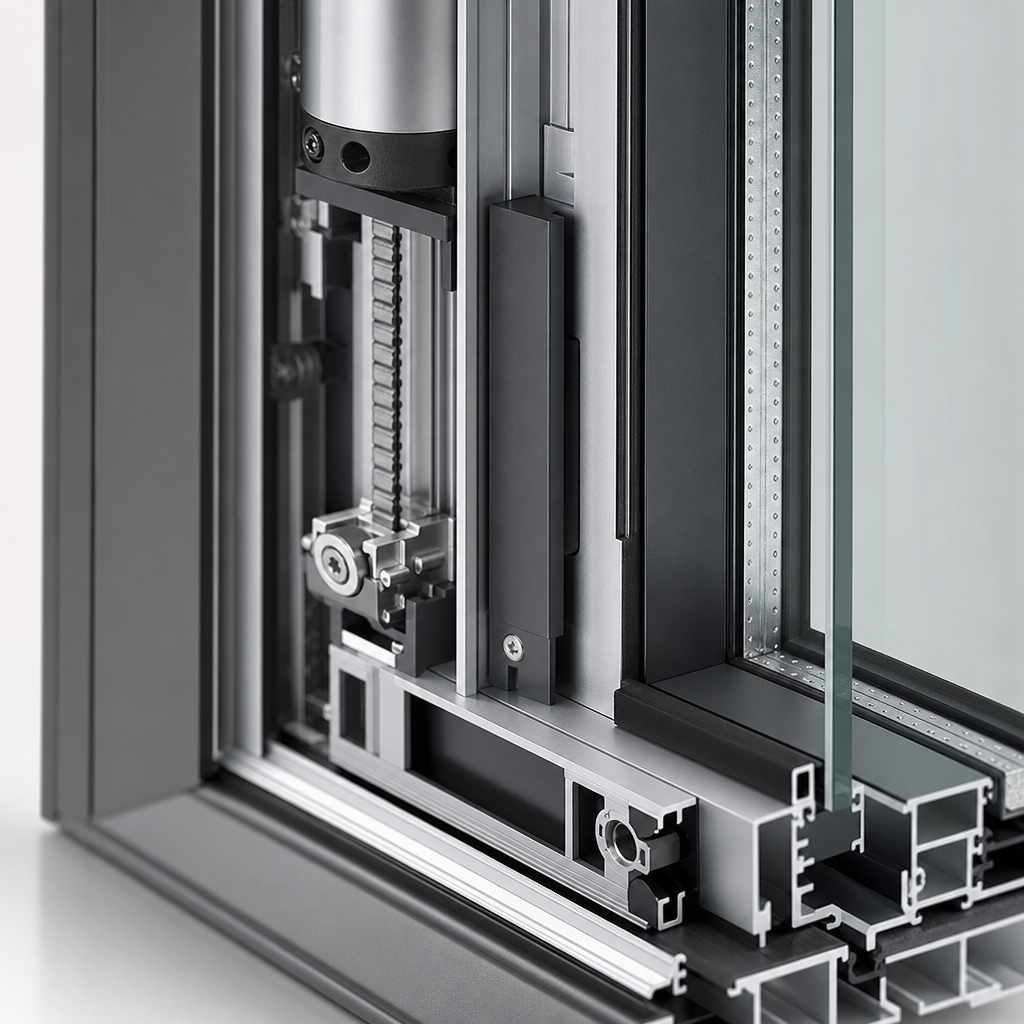

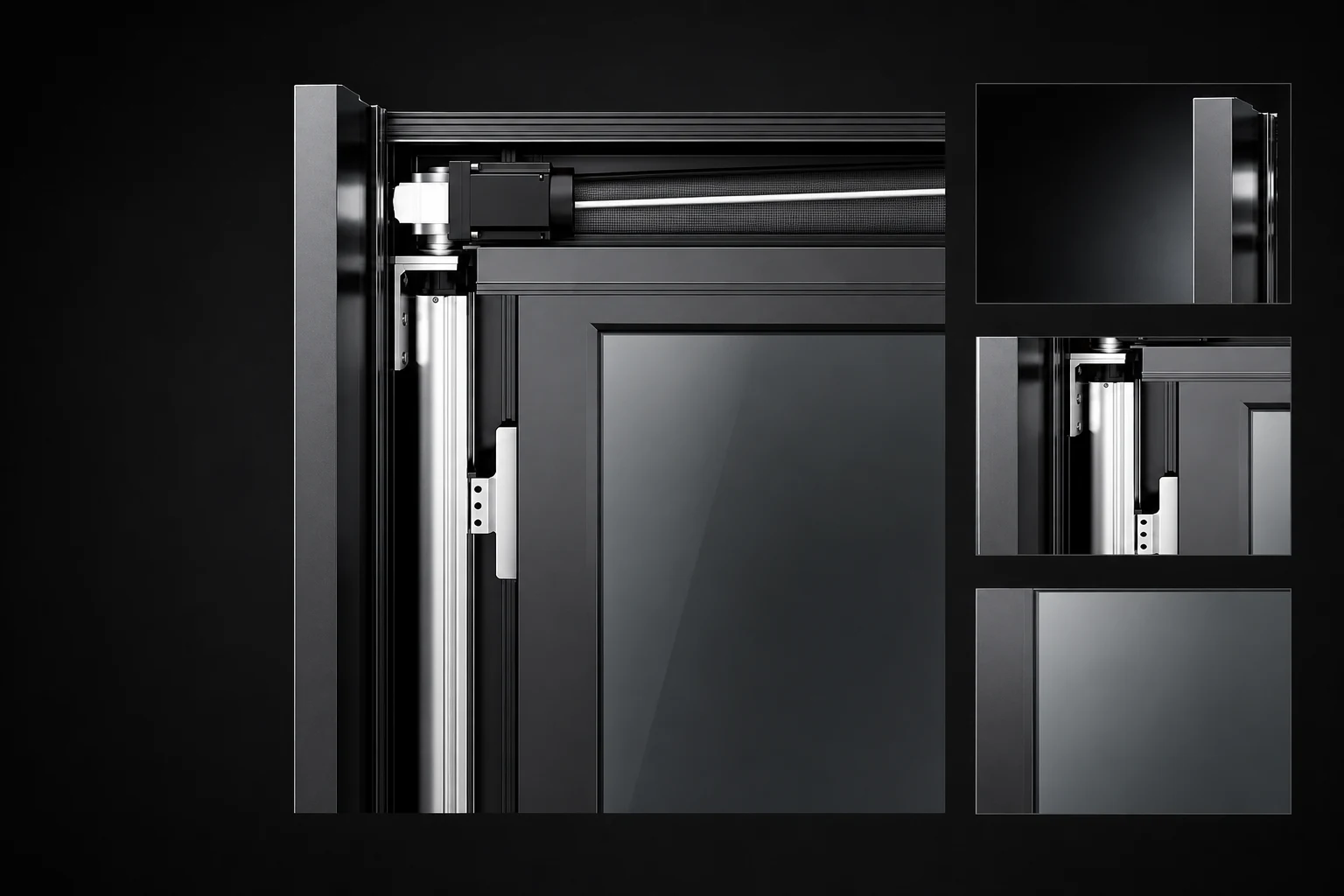

Vertical drive components
The frame section shows a vertical drive track and cylindrical component. Confirm the drive model against the panel size and weight.

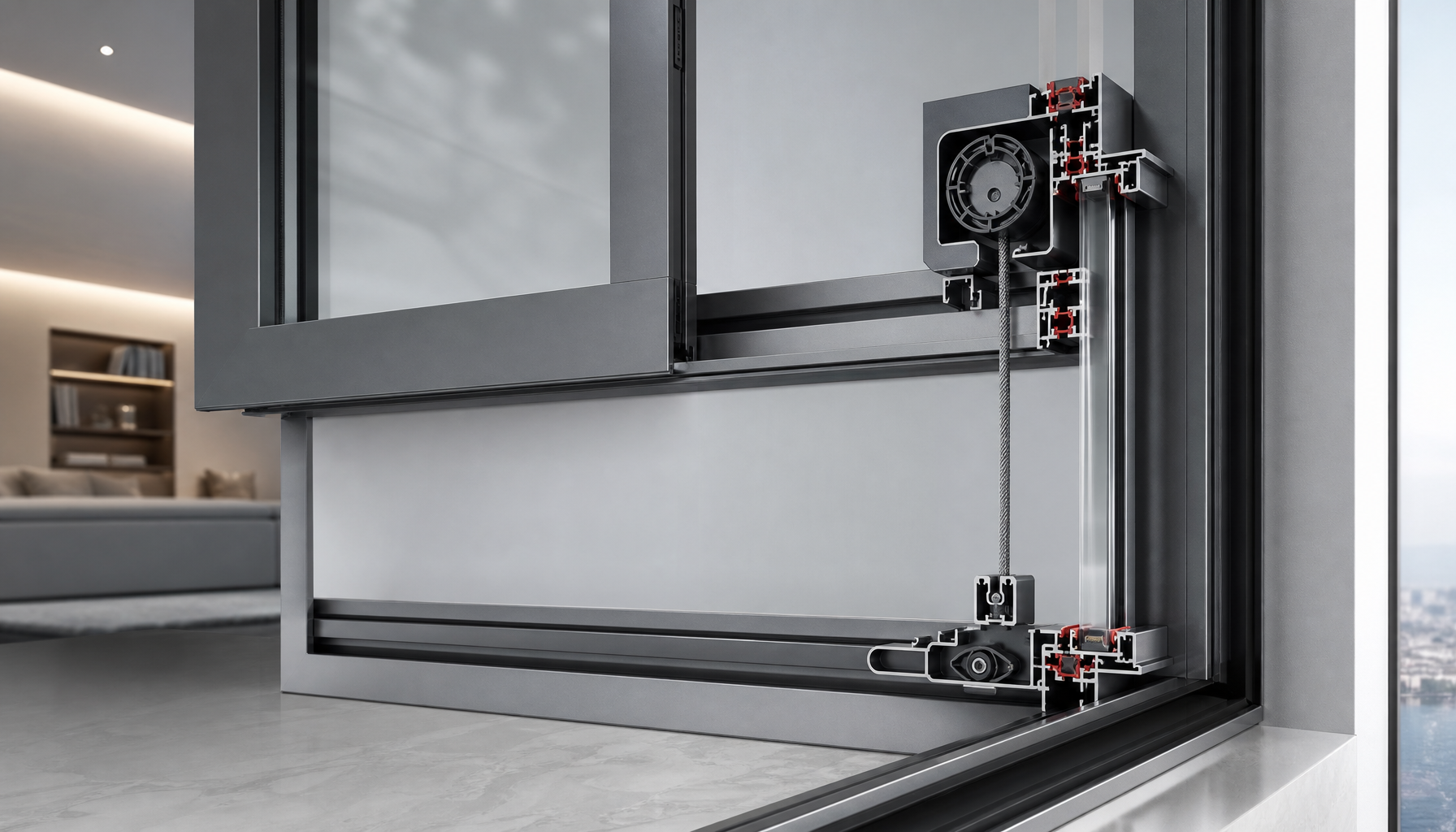

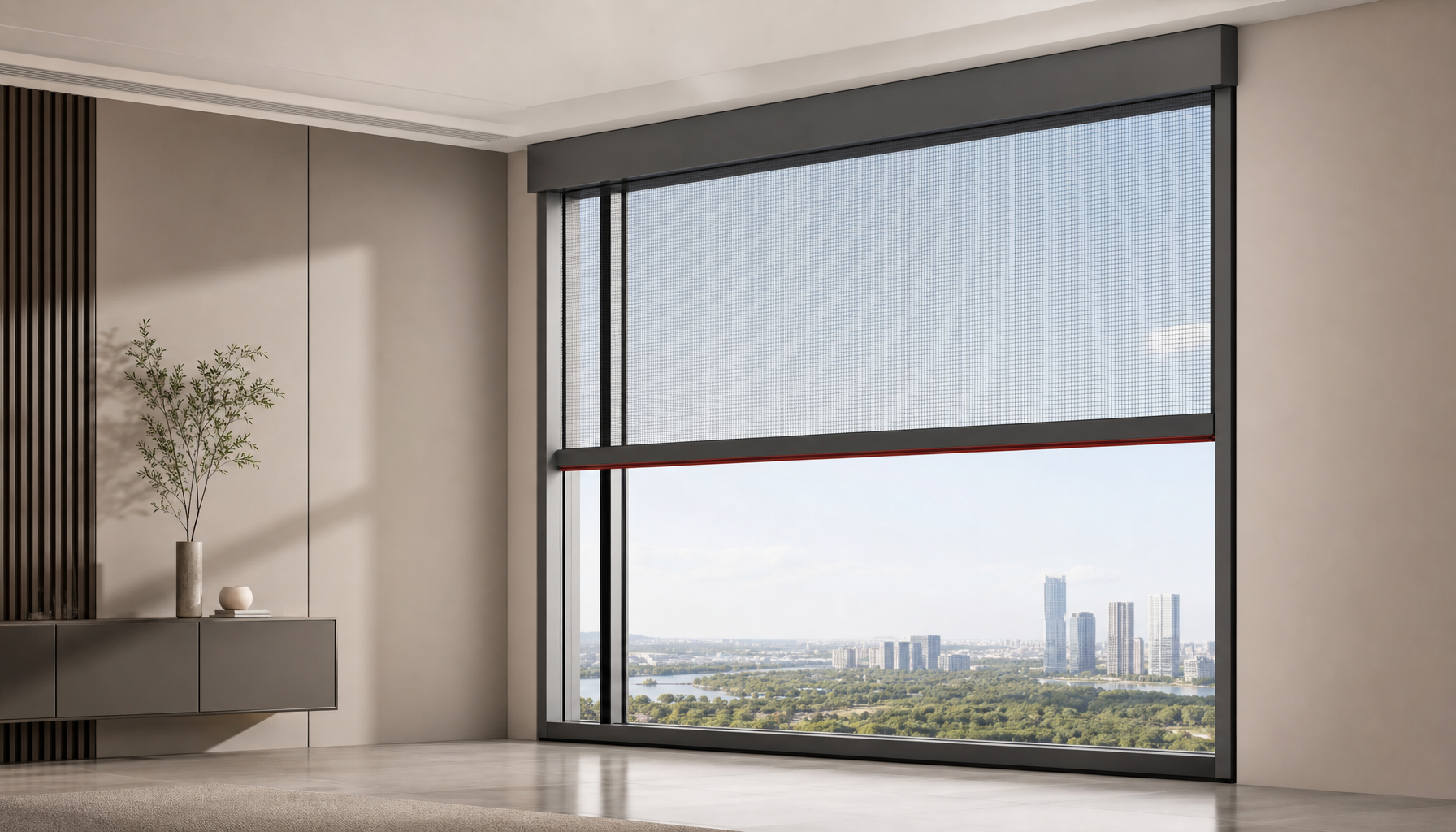

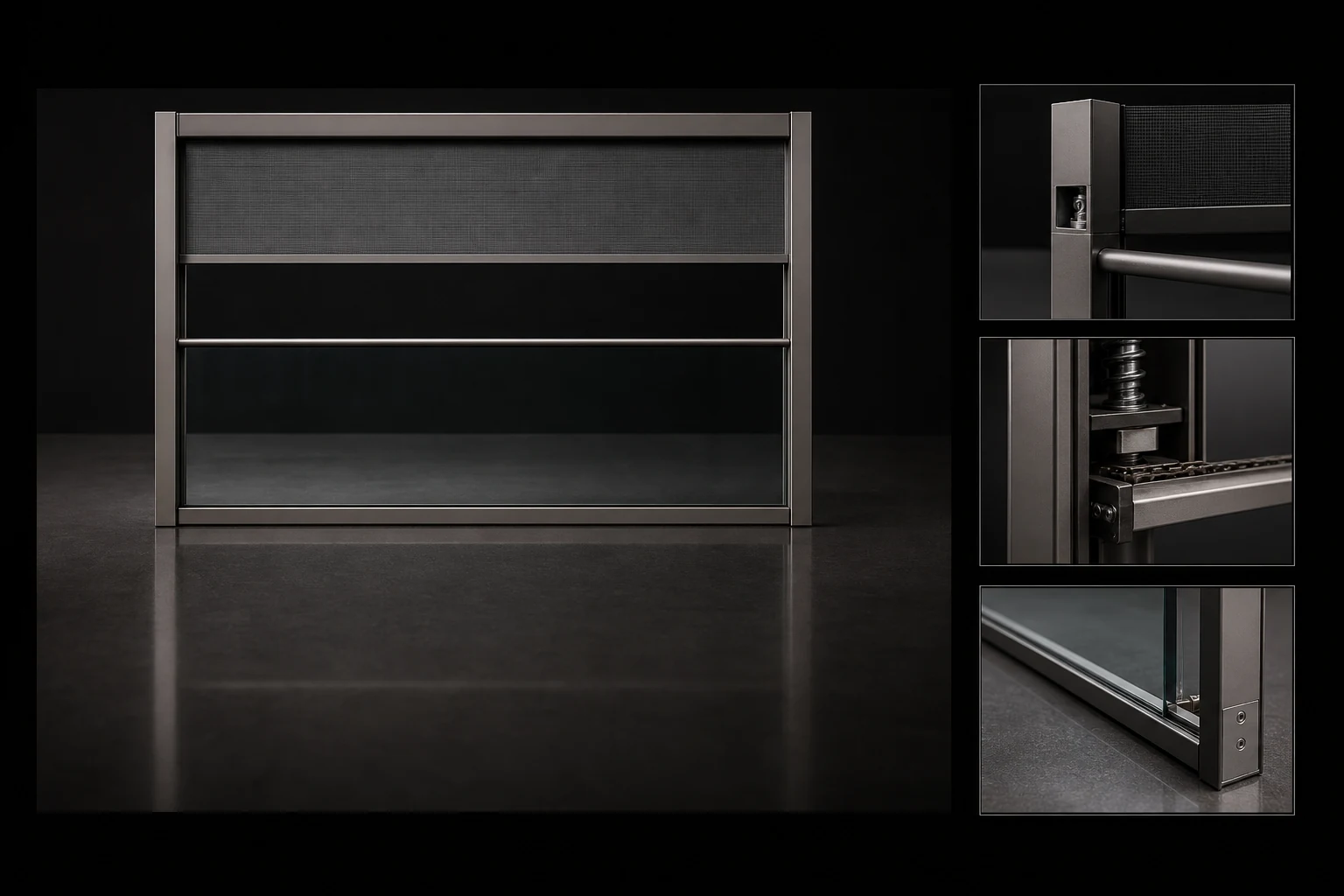

Lifting frame layout
The whole-frame view shows the glass, upper screen and side drive. Confirm the available travel on the selected model drawing.

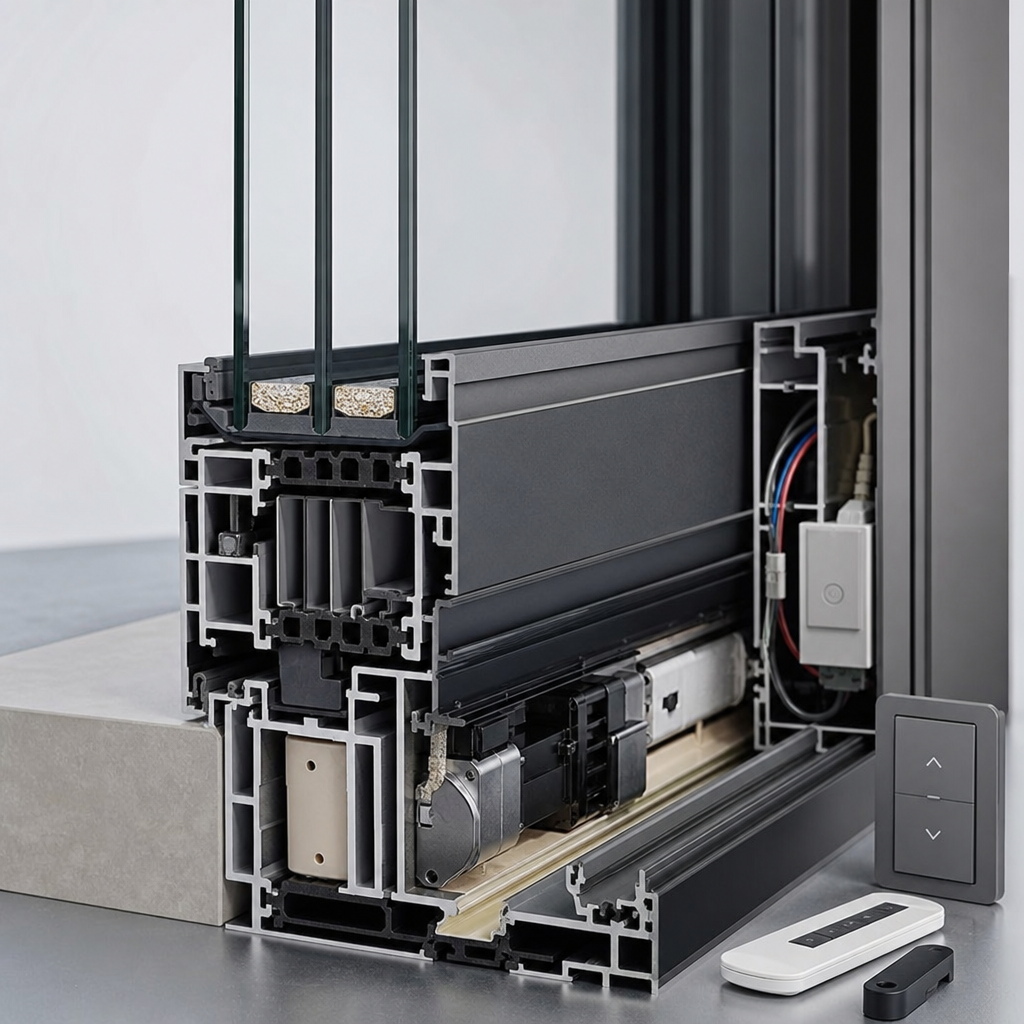

Wall switch and remote
The image shows up/down wall buttons, a handheld remote and a wired module. Confirm the supplied controls before ordering.

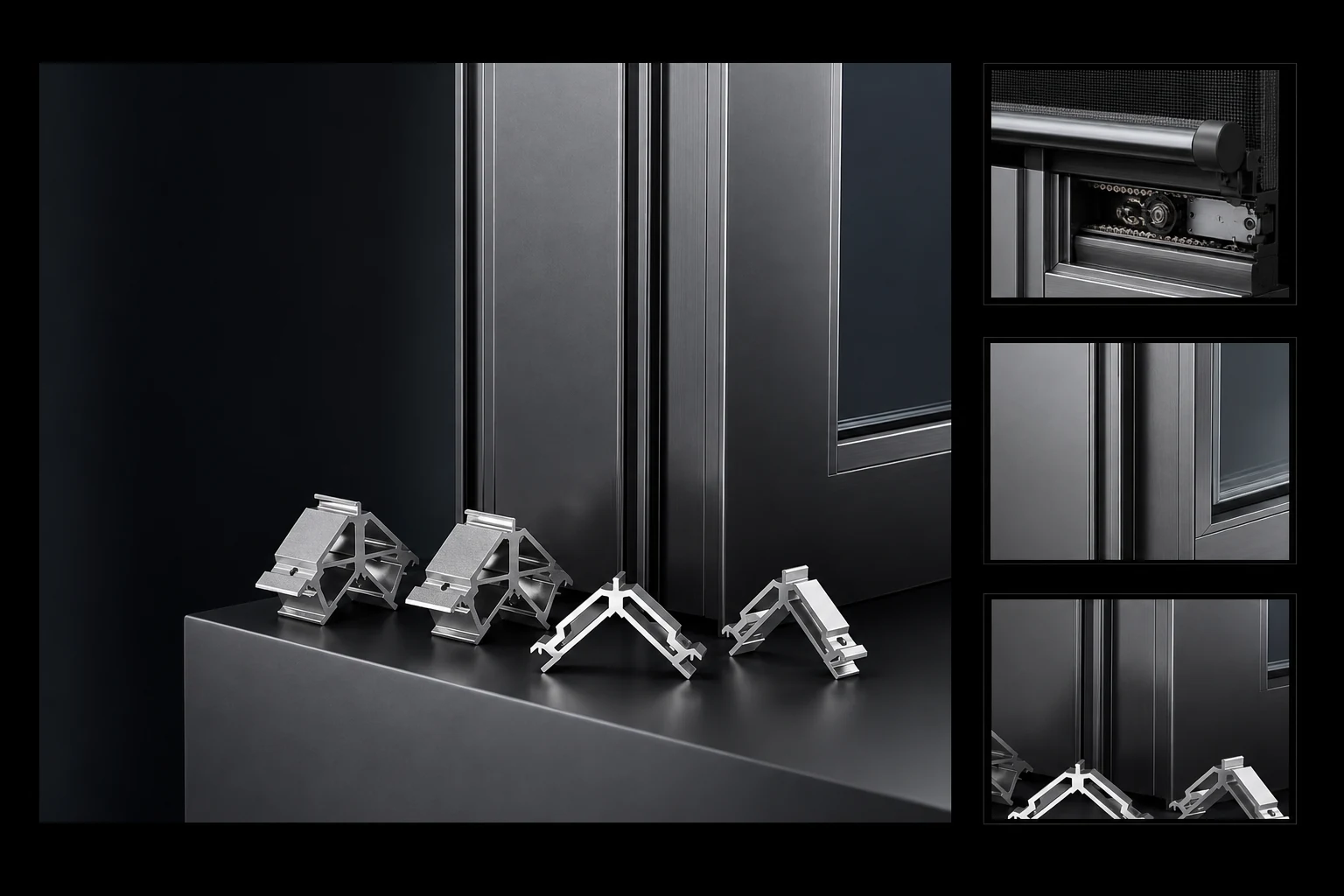

Frame corner components
The corner samples show frame connections beside the sash. Safety sensors and stopping behaviour need separate confirmation and testing.
Can you quote from our drawings?
Yes. Send CAD drawings, window or door schedule, opening sizes, glass target, color and destination country. We will review the suitable system before pricing.
Is 150 the wall thickness?
No. 150 is the system series number. Wall thickness options are reviewed separately, including 2.0 / 3.0 / 5.0 mm.
What decides electric-drive feasibility?
Opening size, glass weight, drive method, control method, power condition, rain sensor and safety requirement should be reviewed together.
What documents can be prepared for export projects?
We can prepare quotation sheets, specification notes, product photos, packing photos, loading photos, invoice and packing list according to order scope.
