WINDOW WALLS

Full-height window walls for residential towers and resorts.

Pressure-equalized, hurricane-rated options. Panel heights up to 3.6m.

SYSTEM OVERVIEW

Window Walls

YULUX window walls are unitized aluminum facade systems engineered for floor-to-ceiling glazing in residential towers, hotels and resorts. Pressure-equalized rain screen design, hurricane impact ratings, and optional integrated operable vents bring facade-grade performance to residential budgets.

Unitized panels for fast tower installation
Pressure-equalized rain screen design
Optional Miami-Dade hurricane impact rating
Integrated operable vents and motorized blinds

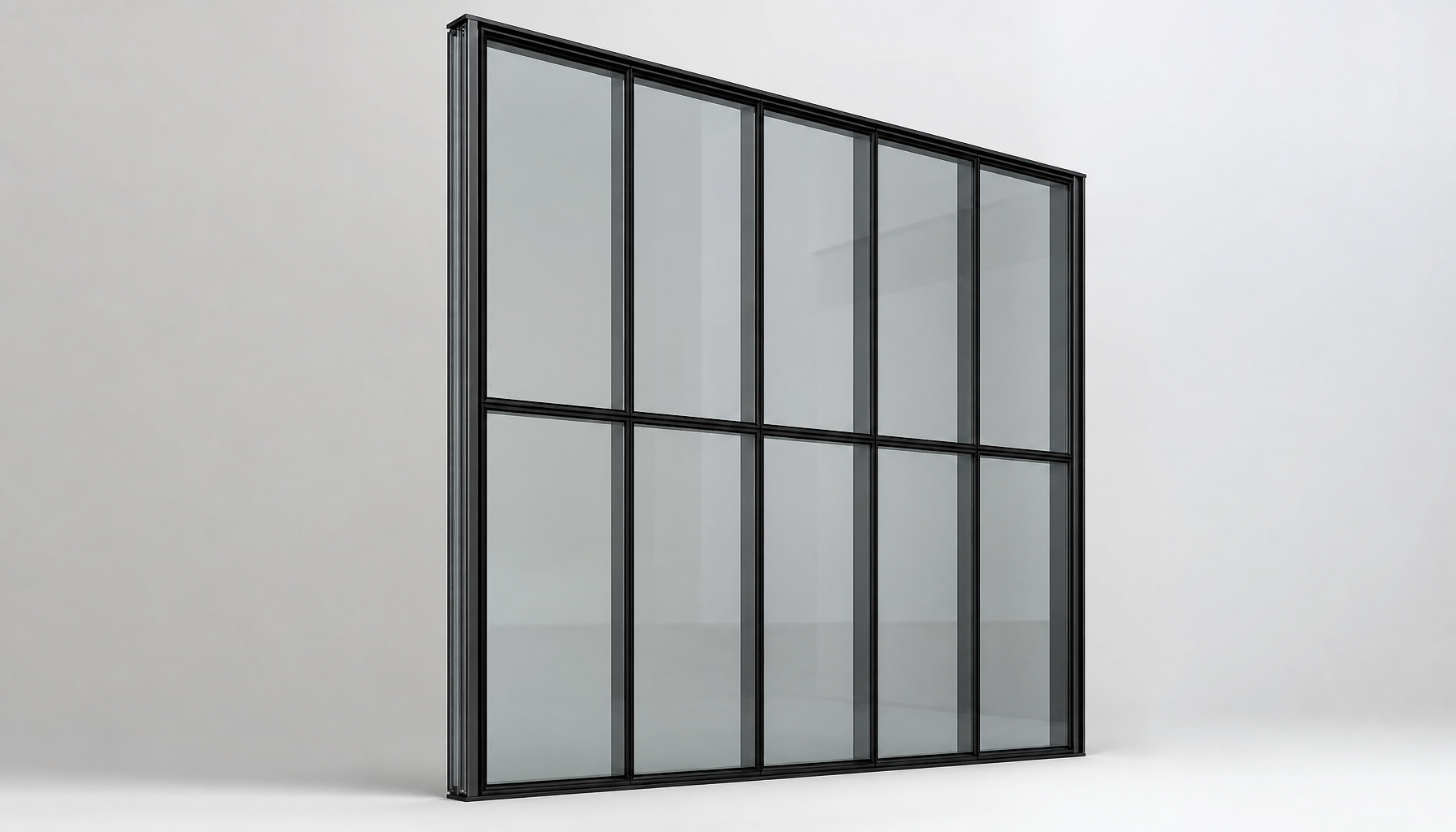

Window Walls structure and material photo

TECHNICAL SPECS

Performance you can specify

Frame depth

120 / 150 mm

Max panel size

1500 × 3600 mm

U-value

≤ 1.6 W/m²·K

Wind load

Up to 6000 Pa

Impact

Optional hurricane impact tested

Acoustics

Up to 44 dB

STRUCTURE & MATERIALS

Frame, hardware and glazing details

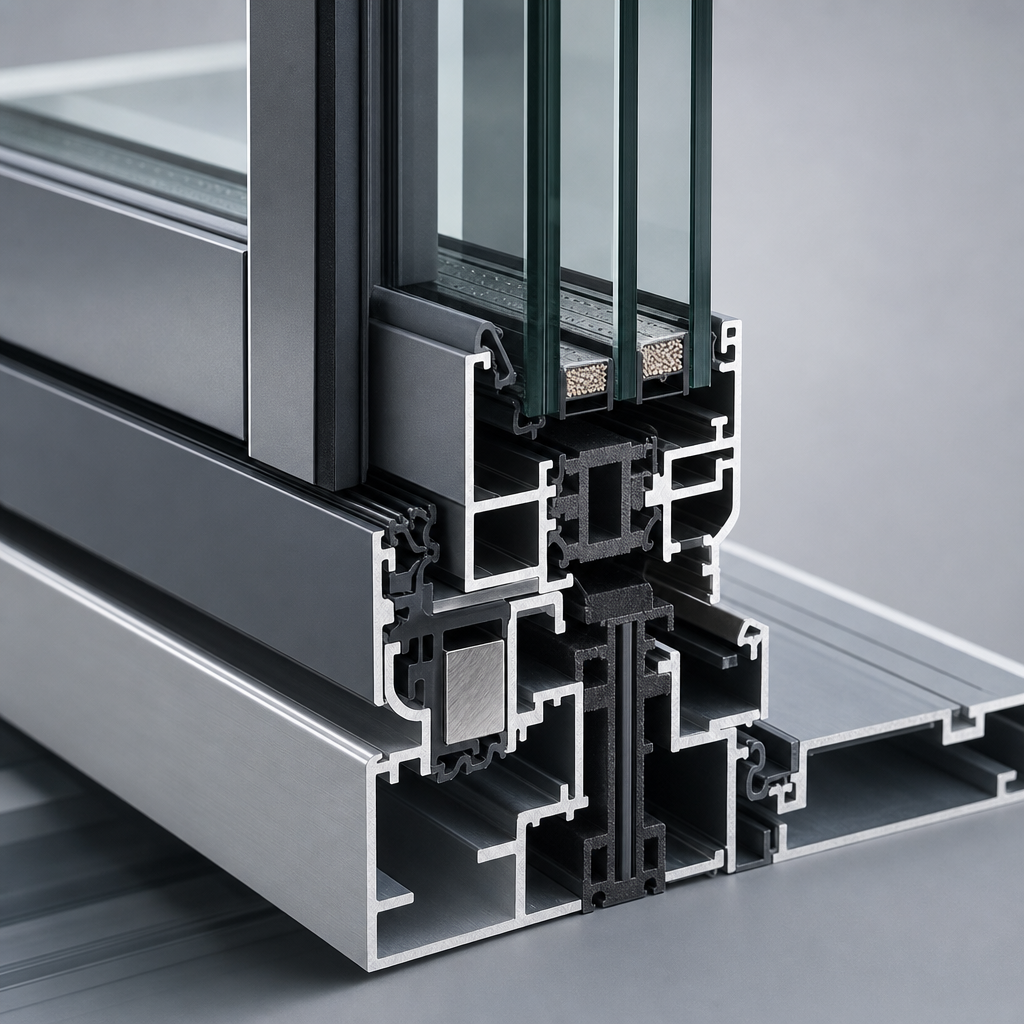

Mullion and gasket build-up

Thermal-break mullions, pressure plates and EPDM gaskets create stable full-height glazing for residential façades.

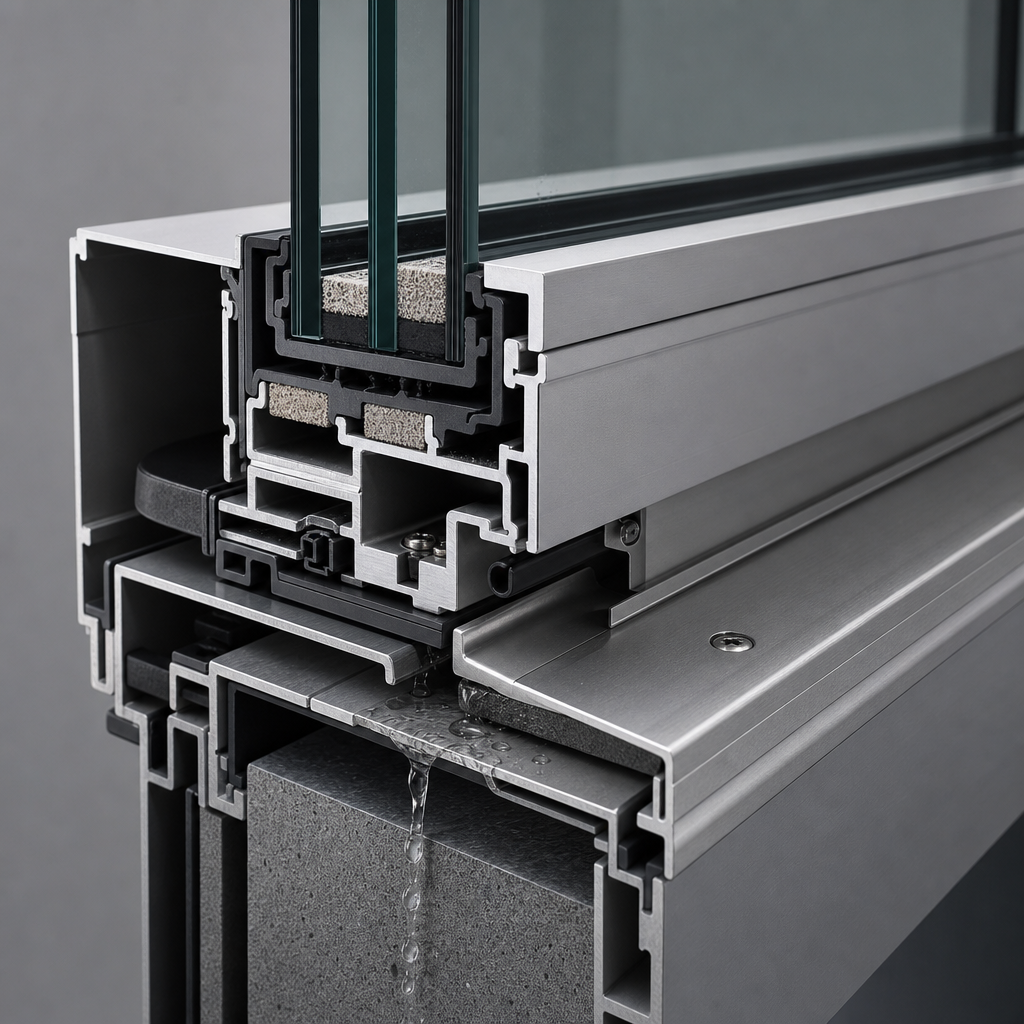

Drainage and sill flashing

Hidden weep paths and sill flashing guide water outward and reduce façade leakage risk under wind-driven rain.

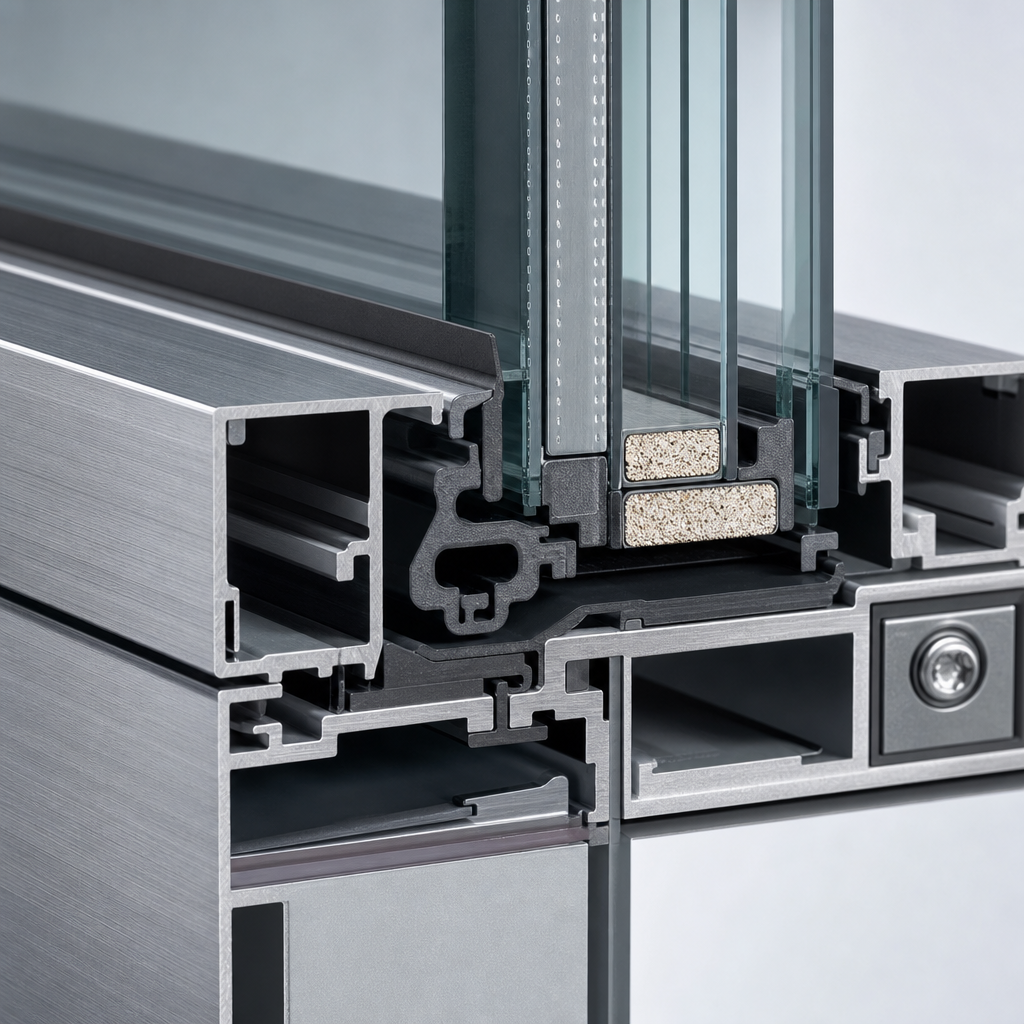

Glass spacer and pressure plate

Insulated glass spacers and pressure plates secure the glazing while maintaining thermal and acoustic performance.

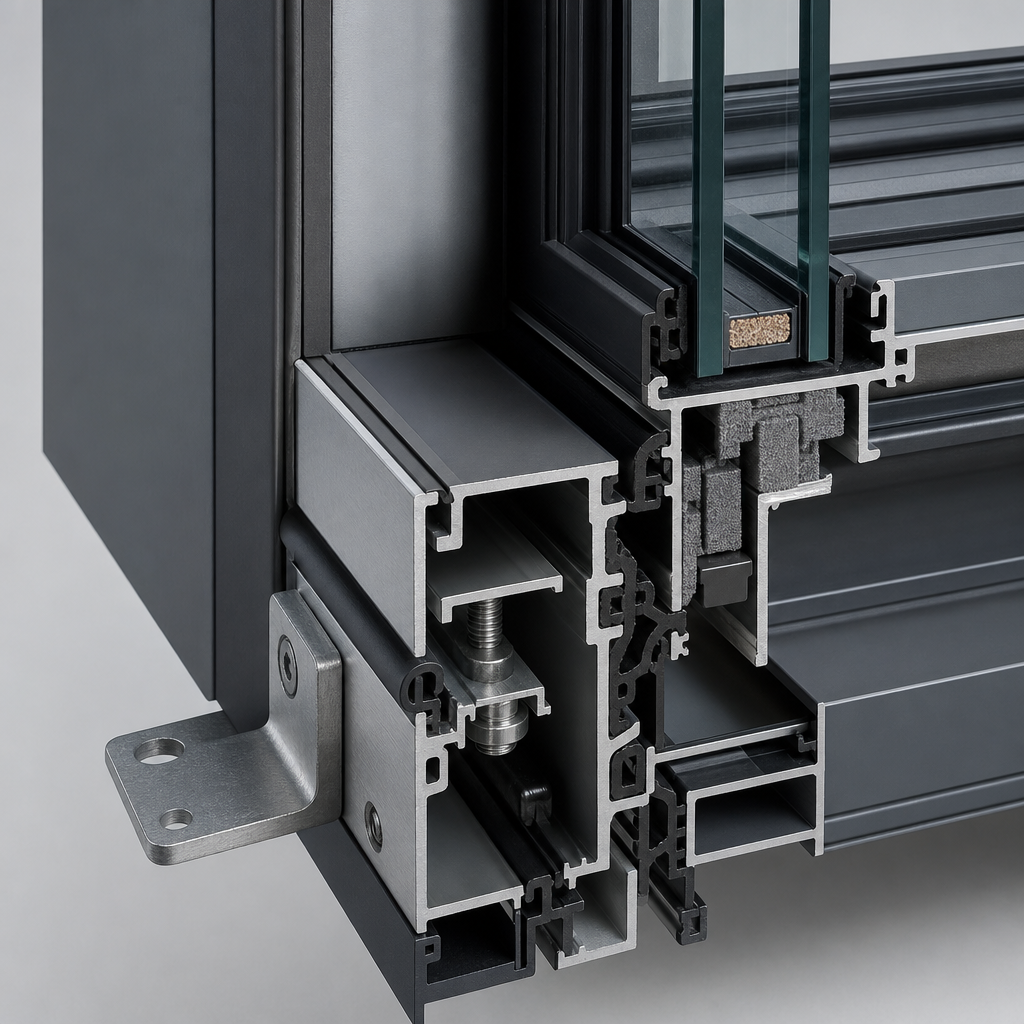

Frame connector and anchor

Connector plates and anchor brackets transfer façade loads back to the structure for safer full-height glazing.

SPECIFICATION OPTIONS

Options to confirm before quotation

Frame Material

Thermal-break aluminum / non-thermal aluminum options

Glass Options

Double glazing, triple glazing, Low-E, laminated and tempered glass

Hardware

Multi-point locking, premium handles, rollers, stays or hinges by system

Surface Finish

Powder coating, PVDF, anodized or wood grain finish

Screen / Accessory

Optional insect screen, drainage, sill and installation accessories

Application

Residential towers / Resorts / Hospitality / Office penthouses

APPLICATIONS

Residential towers
Resorts
Hospitality
Office penthouses

FINISHES

Anodized silver
Anodized champagne
Matte black
Custom RAL

NEXT STEP

Send your drawings

Our engineers will return a fully specified quote within one business day.

Request Quote

FAQ

Questions buyers usually ask

Can you make this system based on our drawings?

Yes. Send your window schedule, CAD drawings, opening sizes or reference photos, and we will confirm the suitable frame depth, glass and hardware configuration.

What glass options can be supplied?

Low-E insulated glass, laminated glass, tempered glass, triple glazing and acoustic or solar-control build-ups can be matched to the project requirement.

Do you provide shop drawing or installation support?

We can support quotation drawings, specification notes, packing details and installation reference information for contractors and importers.

Is this system suitable for coastal or high-wind projects?

Coastal finish, reinforced profiles, laminated glass and upgraded hardware can be specified after reviewing the project location and performance target.
